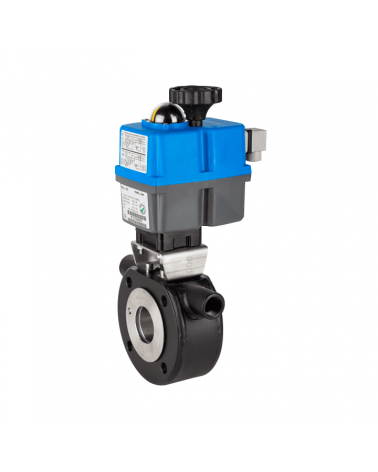

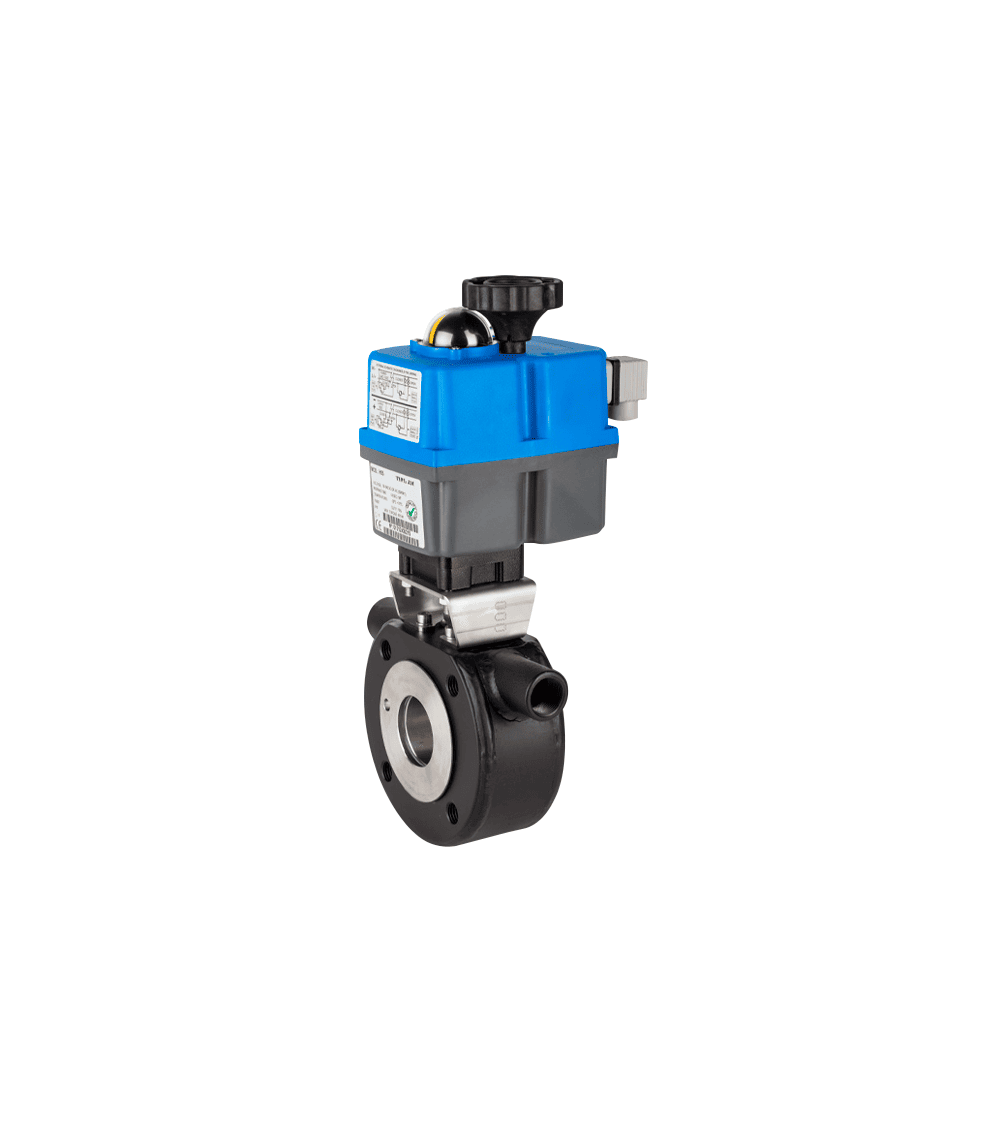

1-piece Wafer type ball valve with heating chamber and single-phase electric actuator

Wafer type full bore ball valve with heating chamber (REF. 2115) and electric actuator. Mounting between DIN PN16 flanges. Construction in ASTM A 105 steel. PTFE seats and seals. Maximum working pressure: 16 bar. Working temperature: -20ºC +180ºC. Connection to heating chamber 3/4" G thread.

REFERENCESIZEACTUATOR TYPEWEIGHT
5615 06 51 1" GE-0 4.65 kg
5615 07 52 1 1/4" GE-1 6.15 kg
5615 08 52 1 1/2" GE-1 8.90 kg
5615 09 52 2" GE-1 10.50 kg
5615 10 53 2 1/2" GE-2 21.15 kg
5615 11 53 3" GE-2 26.50 kg
5615 12 54 4" GE-2+ 37.05 kg

TECHNICAL DATA

€658.47
Tax excluded
Size: 1"
Quantity
CONSULT DELIVERY TIME
