Wafer butterfly valve, for water supply, pumping, drinking water supply, waste water treatment and pumping... Low pressure drop. 100% watertight. Bidirectional flow. No gaskets required for installation. Stainless steel screws. Disc in GJS400/CF8M. Seat in EPDM. Body in ductile iron GJS-400-15. EPDM O-rings. Working pressure: PN10/16 - ANSI150. Working temperature between -10°C and 120°C. Face to face distance EN 558-1 series 20.
Limit switch and handwheel on request, except for valves from DN450 to DN600 which are already included. NBR seat to consult.
| REFERENCE | SIZE |
|---|---|
| 21A.040.1EM | DN 40 |
| 21A.050.1EM | DN 50 |
| 21A.065.1EM | DN 65 |
| 21A.080.1EM | DN 80 |
| 21A.100.1EM | DN 100 |
| 21A.125.1EM | DN 125 |
| 21A.150.1EM | DN 150 |
| 21A.200.1EM | DN 200 |
| 21A.250.1EM | DN 250 |
| 21A.300.1EM | DN 300 |
| 21A.350.1EM | DN 350 |
| 21A.400.1EM | DN 400 |
| 21A.450.1EM | DN 450 |
| 21A.500.1EM | DN 500 |
| 21A.600.1EM | DN 600 |

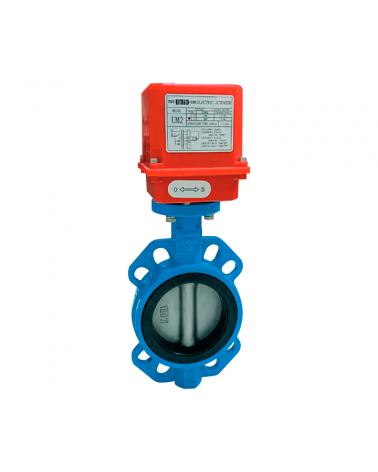

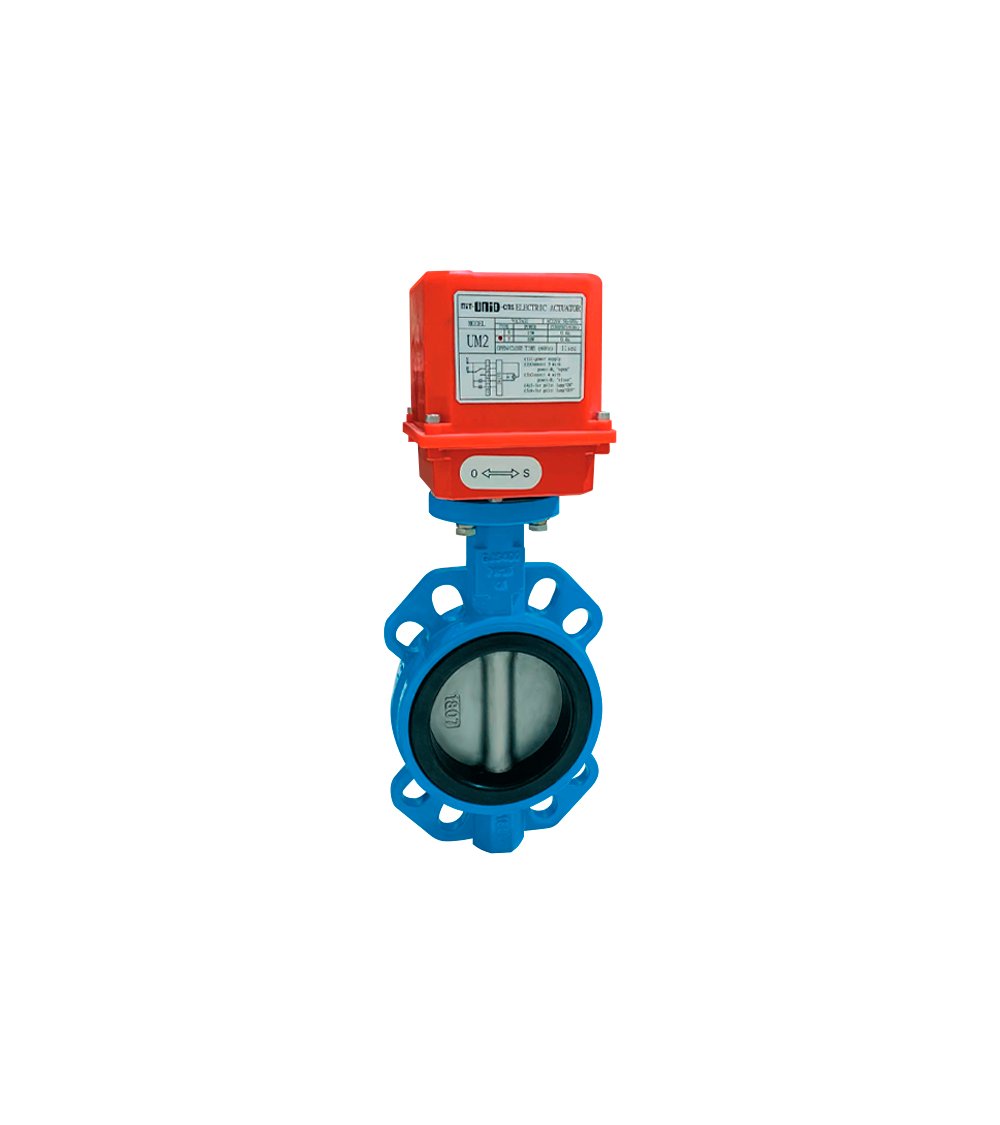

Wafer type butterfly valve with single phase electric actuator
Wafer butterfly valve, for water supply, pumping, drinking water supply, waste water treatment and pumping... Low pressure drop. 100% watertight. Bidirectional flow. No gaskets required for installation. Stainless steel screws. Disc in GJS400/CF8M. Seat in EPDM. Body in ductile iron GJS-400-15. EPDM O-rings. Working pressure: PN10/16 - ANSI150. Working temperature between -10°C and 120°C. Face to face distance EN 558-1 series 20.
Limit switch and handwheel on request, except for valves from DN450 to DN600 which are already included. NBR seat to consult.
| REFERENCE | SIZE |
|---|---|
| 21A.040.1EM | DN 40 |
| 21A.050.1EM | DN 50 |
| 21A.065.1EM | DN 65 |
| 21A.080.1EM | DN 80 |
| 21A.100.1EM | DN 100 |
| 21A.125.1EM | DN 125 |
| 21A.150.1EM | DN 150 |
| 21A.200.1EM | DN 200 |
| 21A.250.1EM | DN 250 |
| 21A.300.1EM | DN 300 |
| 21A.350.1EM | DN 350 |
| 21A.400.1EM | DN 400 |
| 21A.450.1EM | DN 450 |
| 21A.500.1EM | DN 500 |
| 21A.600.1EM | DN 600 |
