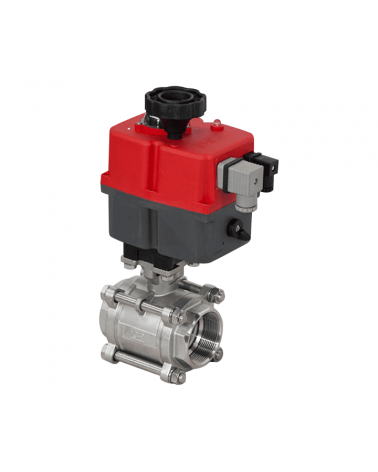

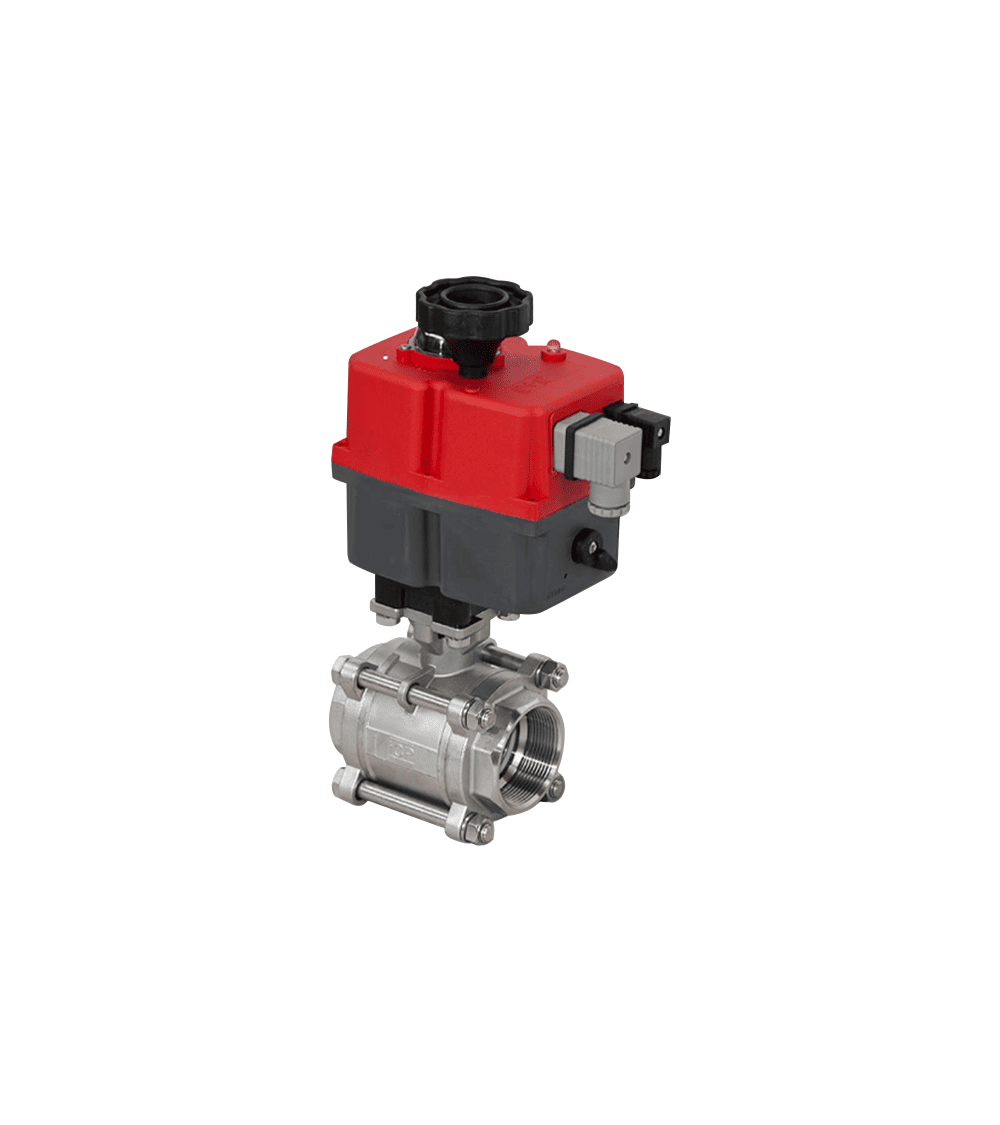

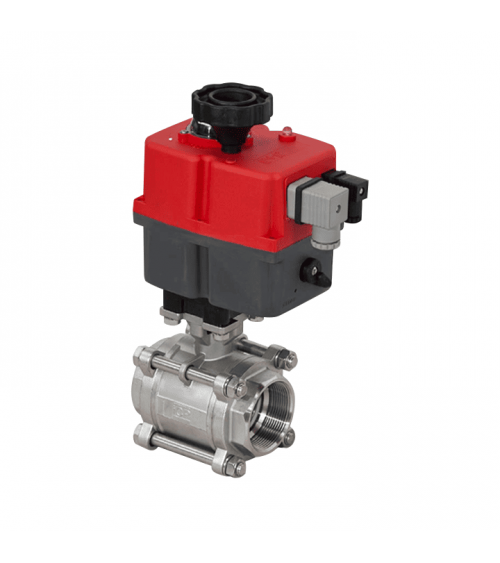

3 piece full bore ball valve with single-phase electrical actuator

3-piece full bore ball valve, NPT threaded (ASME B1.20.1). ISO 5211 connection for mounting on pneumatic or electric actuators. 1000 WOG (PN63), ISO 5211, from 1/4" (DN8) to 4" (DN100). Body in stainless steel (1.4408). Ball in AISI-316, seats in PTFE. Locking device. The valves are CE and ATEX certified. Ball valve with electrical actuator from 24V to 240V ac/dc. IP65.

REFERENCESIZEACTUATOR
141IMF08J2 DN 8 J2 10
141IMF10J2 DN 10 J2 10
141IMF15J2 DN 15 J2 10
141IMF20J2 DN 20 J2 10
141IMF25J4 DN 25 J4 20
141IMF32J4 DN 32 J4 20
141IMF40J4 DN 40 J4 35
141IMF50J4 DN 50 J4 35
141IMF65J4 DN 65 J4 85
141IMF80J4 DN 80 J4 140
141IMF100J4 DN 100 J4 300
€262.00
Tax excluded
Size: DN8
Quantity
CONSULT DELIVERY TIME

You might also like

Quick view

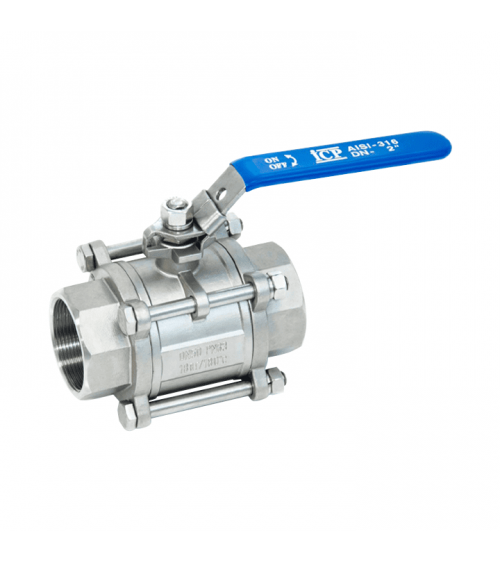

Full bore ball valve 3 pieces
