Two piece ball valve, full bore, BSP threaded ends (DIN 259/2999). ISO 5211 connection for mounting on pneumatic or electric actuators. 1000 WOG (PN63), ISO 5211, from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body, AISI-316 Ball and PTFE seats. Locking device. The valves are certified CE and ATEX. Ball valve with electrical actuator from 24V to 240V ac/dc, IP65.
| REFERENCE | SIZE | ACTUATOR |
|---|---|---|
| 2001IMF08J2 | DN 8 | J2 10 |
| 2001IMF10J2 | DN 10 | J2 10 |
| 2001IMF15J2 | DN 15 | J2 10 |
| 2001IMF20J2 | DN 20 | J2 10 |
| 2001IMF25J4 | DN 25 | J4 20 |
| 2001IMF32J4 | DN 32 | J4 20 |
| 2001IMF40J4 | DN 40 | J4 35 |
| 2001IMF50J4 | DN 50 | J4 35 |
| 2001IMF65J4 | DN 65 | J4 85 |
| 2001IMF80J4 | DN 80 | J4 140 |
| 2001IMF100J4 | DN 100 | J4 140 |

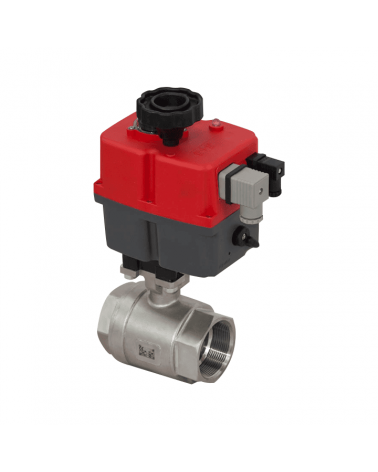

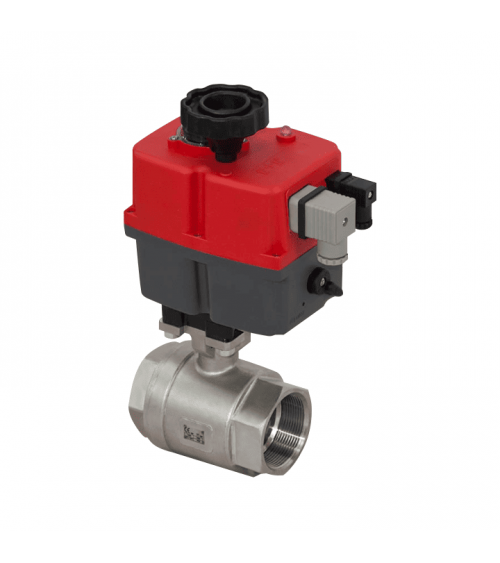

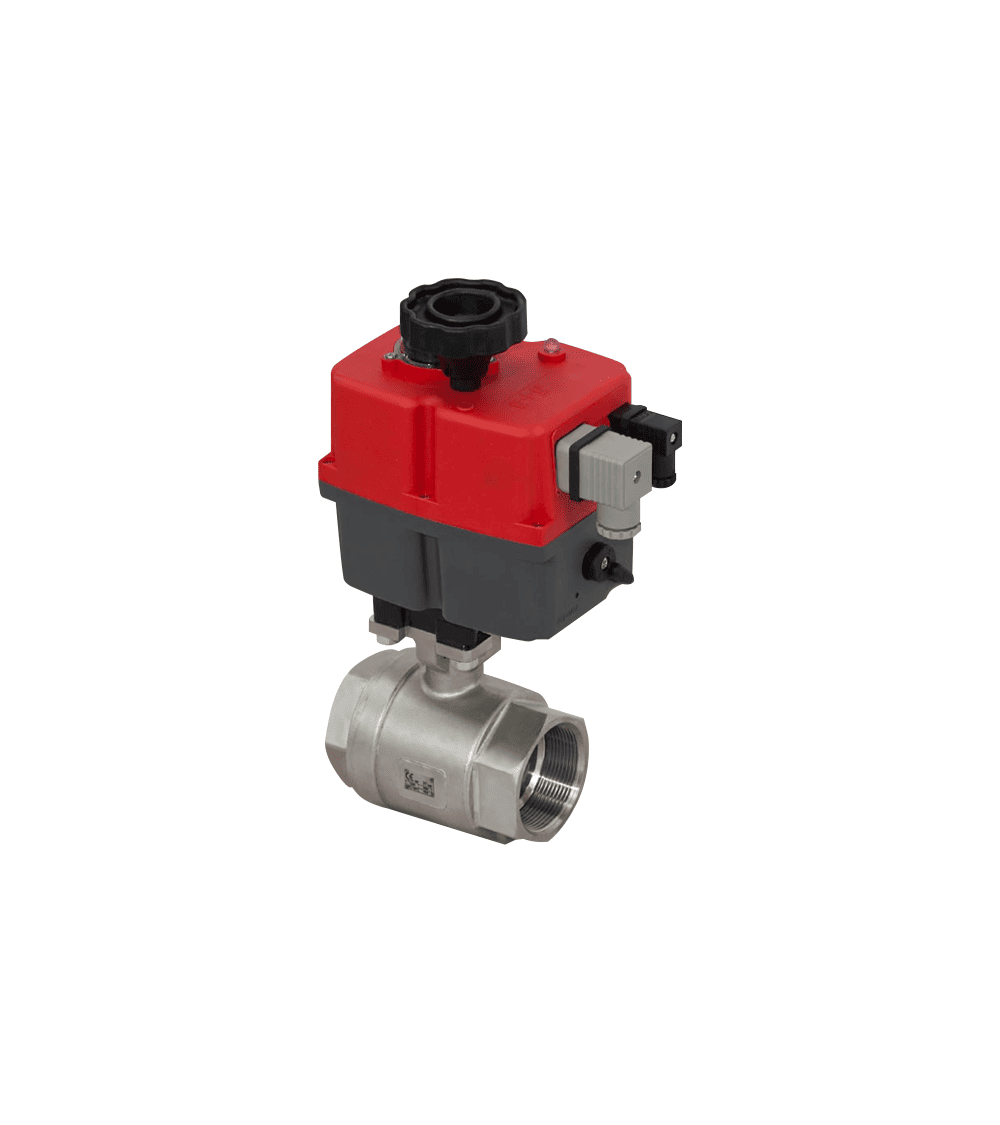

2 piece full bore ball valve with single-phase electrical actuator
Two piece ball valve, full bore, BSP threaded ends (DIN 259/2999). ISO 5211 connection for mounting on pneumatic or electric actuators. 1000 WOG (PN63), ISO 5211, from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body, AISI-316 Ball and PTFE seats. Locking device. The valves are certified CE and ATEX. Ball valve with electrical actuator from 24V to 240V ac/dc, IP65.
| REFERENCE | SIZE | ACTUATOR |
|---|---|---|
| 2001IMF08J2 | DN 8 | J2 10 |
| 2001IMF10J2 | DN 10 | J2 10 |
| 2001IMF15J2 | DN 15 | J2 10 |
| 2001IMF20J2 | DN 20 | J2 10 |
| 2001IMF25J4 | DN 25 | J4 20 |
| 2001IMF32J4 | DN 32 | J4 20 |
| 2001IMF40J4 | DN 40 | J4 35 |
| 2001IMF50J4 | DN 50 | J4 35 |
| 2001IMF65J4 | DN 65 | J4 85 |
| 2001IMF80J4 | DN 80 | J4 140 |
| 2001IMF100J4 | DN 100 | J4 140 |
€252.00
Tax excluded
