2-piece ball valve (REF. 2015) with electric actuator. Threaded ends according to ISO 7-1 (EN 10226-1). AISI 316 stainless steel construction. PTFE seats + 15% fiberglass (other material on request). FPM (Viton) O-ring on shaft. PTFE + 15% graphite shaft seals. Locking system. Direct actuator mounting according to ISO 5211. Non-returnable shaft. Maximum working pressure: 63 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | ACTUATOR TYPE | WEIGHT |
|---|---|---|---|
| 5621 02 51 | 1/4" | GE-0 | 1.85 kg |
| 5621 03 51 | 3/8" | GE-0 | 2.84 kg |
| 5621 04 51 | 1/2" | GE-0 | 3 kg |
| 5621 05 51 | 3/4" | GE-0 | 3.05 kg |
| 5621 06 51 | 1" | GE-0 | 3.34 kg |
| 5621 07 51 | 1 1/4" | GE-0 | 3.48 kg |
| 5621 08 47 | 1 1/2" | GE-05 | 4.30 kg |
| 5621 09 52 | 2" | GE-1 | 6.06 kg |

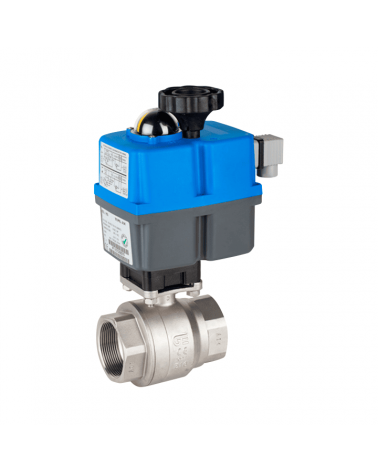

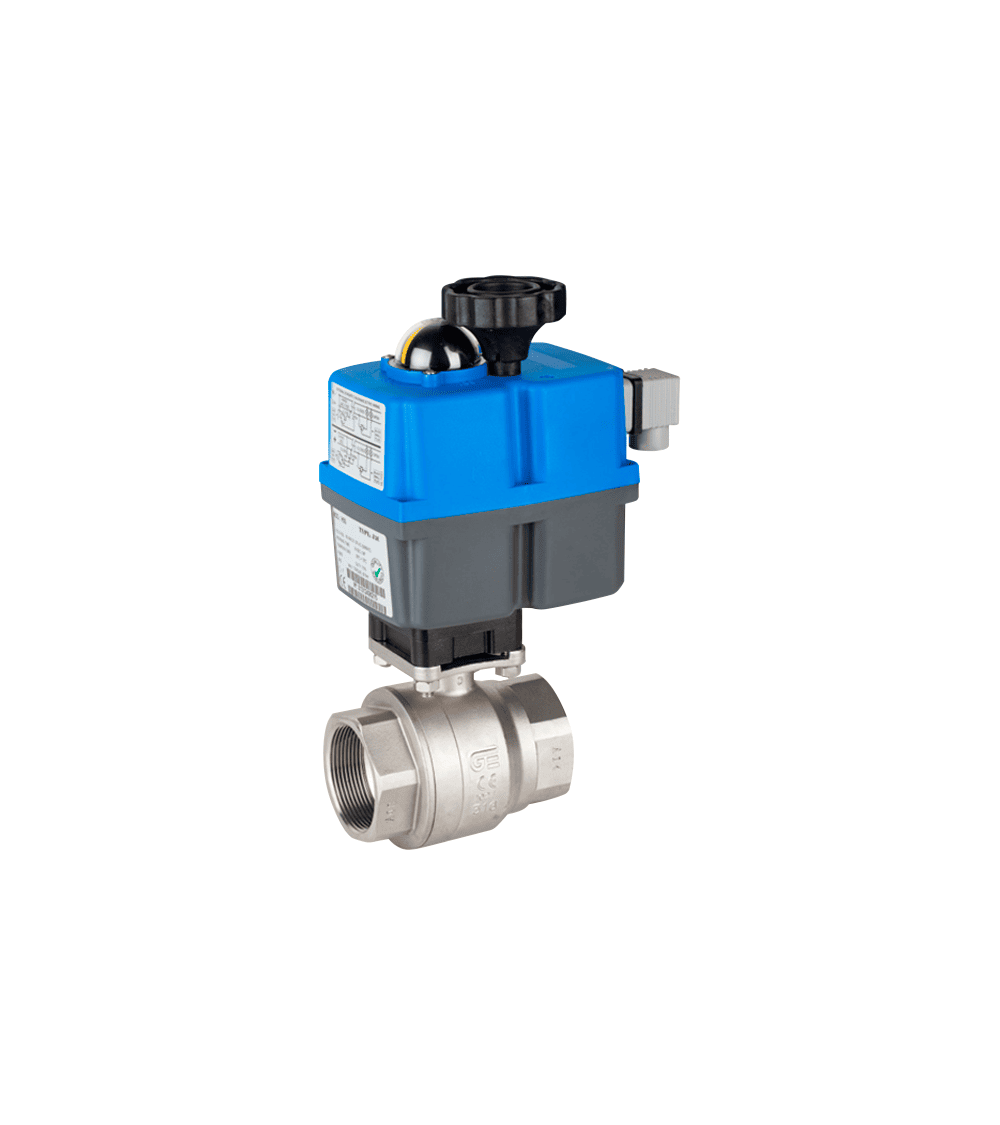

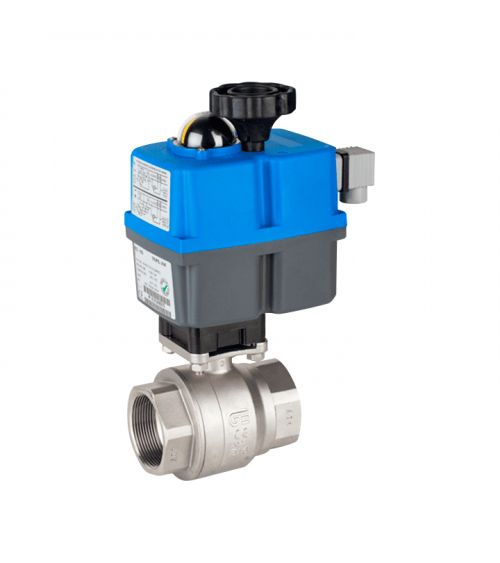

2-piece ball valve with single-phase electric actuator
2-piece ball valve (REF. 2015) with electric actuator. Threaded ends according to ISO 7-1 (EN 10226-1). AISI 316 stainless steel construction. PTFE seats + 15% fiberglass (other material on request). FPM (Viton) O-ring on shaft. PTFE + 15% graphite shaft seals. Locking system. Direct actuator mounting according to ISO 5211. Non-returnable shaft. Maximum working pressure: 63 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | ACTUATOR TYPE | WEIGHT |
|---|---|---|---|
| 5621 02 51 | 1/4" | GE-0 | 1.85 kg |
| 5621 03 51 | 3/8" | GE-0 | 2.84 kg |
| 5621 04 51 | 1/2" | GE-0 | 3 kg |
| 5621 05 51 | 3/4" | GE-0 | 3.05 kg |
| 5621 06 51 | 1" | GE-0 | 3.34 kg |
| 5621 07 51 | 1 1/4" | GE-0 | 3.48 kg |
| 5621 08 47 | 1 1/2" | GE-05 | 4.30 kg |
| 5621 09 52 | 2" | GE-1 | 6.06 kg |
€374.91
Tax excluded
