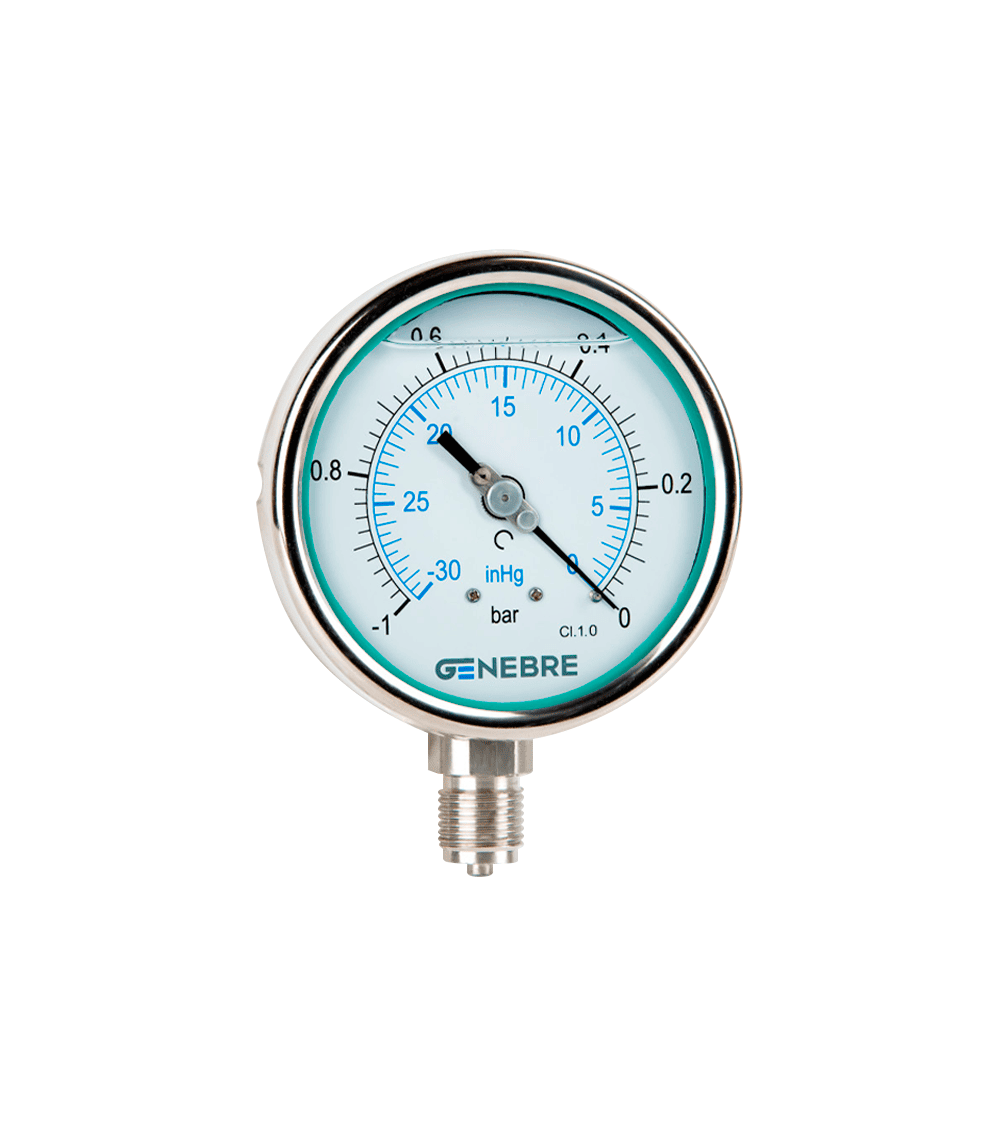

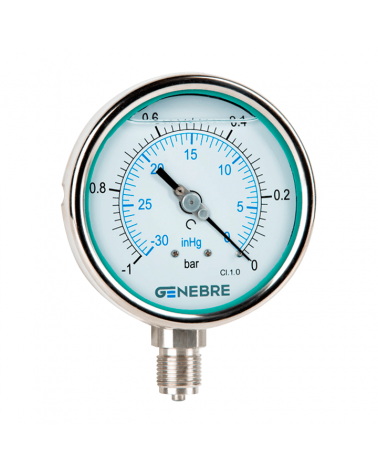

Pressure gauge (vacuum gauge) with accuracy class 1, according to EN 837-1. Made of stainless steel AISI 304. Measuring ranges -1~0 bar/-1~3 bar. Working temperature: -20ºC +60ºC. Connection in stainless steel 304 with bottom outlet 1/2". White aluminum dial with blue and black numbers. Black aluminum pointer with micrometric screw. Double scale (inHg/psi/bar). Nominal diameter 100 mm. Bayonet locking ring. Laminated glass sight glass. IP65 protection. Optional with glycerine.
| REFERENCE | SCALE |
|---|---|
| 8011 101 | -1 +0 bar |
| 8011 103 | -1 +3 bar |
Pressure gauge (vacuometer)
Pressure gauge (vacuum gauge) with accuracy class 1, according to EN 837-1. Made of stainless steel AISI 304. Measuring ranges -1~0 bar/-1~3 bar. Working temperature: -20ºC +60ºC. Connection in stainless steel 304 with bottom outlet 1/2". White aluminum dial with blue and black numbers. Black aluminum pointer with micrometric screw. Double scale (inHg/psi/bar). Nominal diameter 100 mm. Bayonet locking ring. Laminated glass sight glass. IP65 protection. Optional with glycerine.
| REFERENCE | SCALE |
|---|---|
| 8011 101 | -1 +0 bar |
| 8011 103 | -1 +3 bar |
€83.54
Tax excluded
