Price
€491.24
Wafer type butterfly valve with split body in stainless steel 1.4408 (CF8M) for mounting between ANSI 150 and EN 1092 PN 10/16 flanges. PTFE seat...
Lug type butterfly valve with body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between flanges EN 1092 PN 10/16. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Flange mounting actuators according to ISO 5211. Length between faces according to EN 558-1 Series 20 (DIN 3202 K1). Painted with Epoxy paint. Maximum working pressure: 16 bar (sizes DN50 to DN150), 10 bar (sizes DN200 to DN300). Working temperature: -20ºC +120ºC.
| REFERENCE | SIZE | DN | PN | WEIGHT |
|---|---|---|---|---|
| 2108 09 | 2" | 50 | 16 | 4.11 kg |
| 2108 10 | 2 1/2" | 65 | 16 | 4.50 kg |
| 2108 11 | 3" | 80 | 16 | 5.66 kg |
| 2108 12 | 4" | 100 | 16 | 7.71 kg |
| 2108 13 | 5" | 125 | 16 | 9.38 kg |
| 2108 14 | 6" | 150 | 16 | 12.82 kg |
| 2108 16 | 8" | 200 | 10 | 17.48 kg |
| 2108 18 | 10" | 250 | 10 | 28.89 kg |
| 2108 20 | 12" | 300 | 10 | 50.90 kg |
*The 12" (DN 300) size is operated by manual reducer.

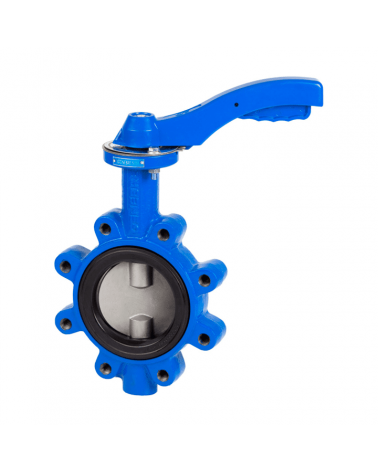

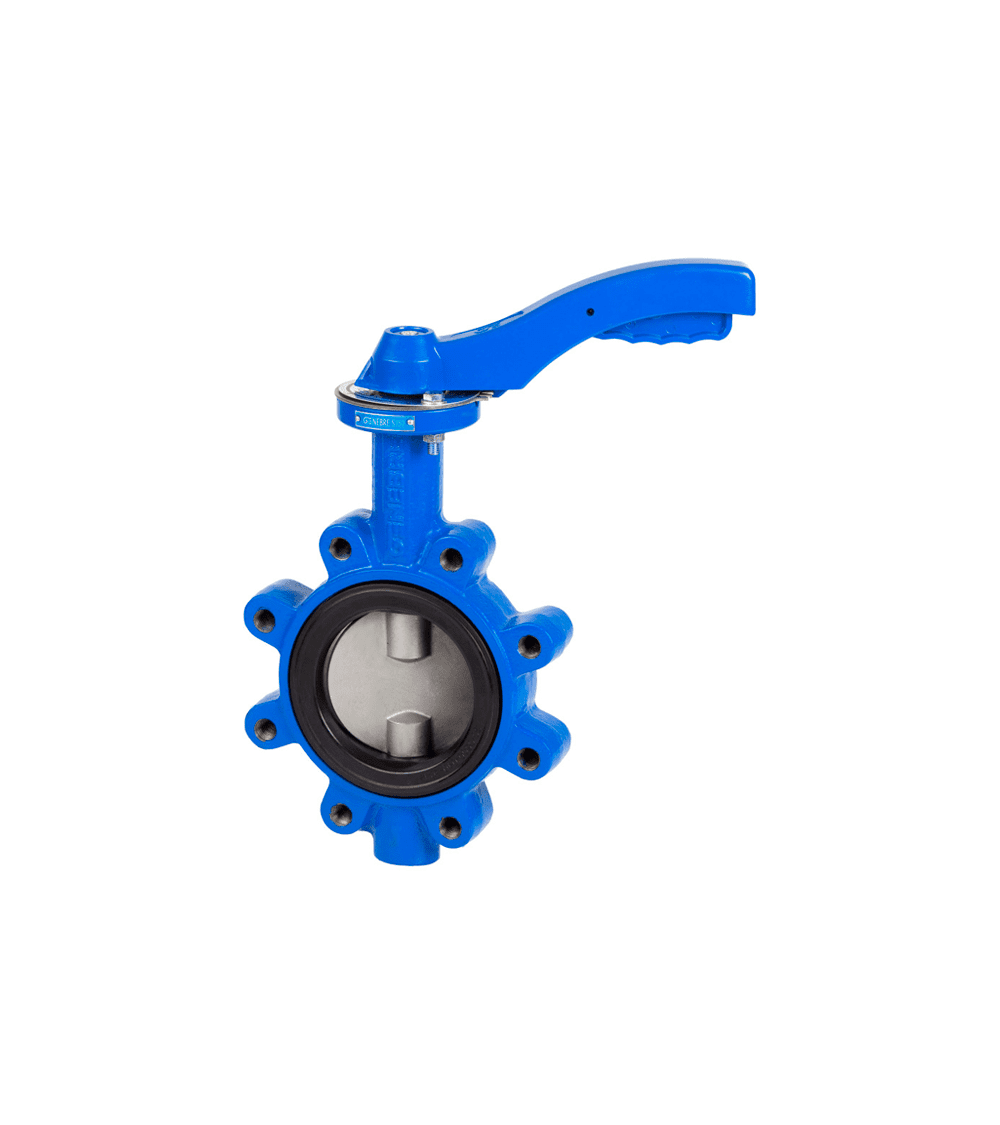

Lug type butterfly valve with flanged mounting EN 1092 − nodular cast iron body
Lug type butterfly valve with body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between flanges EN 1092 PN 10/16. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Flange mounting actuators according to ISO 5211. Length between faces according to EN 558-1 Series 20 (DIN 3202 K1). Painted with Epoxy paint. Maximum working pressure: 16 bar (sizes DN50 to DN150), 10 bar (sizes DN200 to DN300). Working temperature: -20ºC +120ºC.
| REFERENCE | SIZE | DN | PN | WEIGHT |
|---|---|---|---|---|
| 2108 09 | 2" | 50 | 16 | 4.11 kg |
| 2108 10 | 2 1/2" | 65 | 16 | 4.50 kg |
| 2108 11 | 3" | 80 | 16 | 5.66 kg |
| 2108 12 | 4" | 100 | 16 | 7.71 kg |
| 2108 13 | 5" | 125 | 16 | 9.38 kg |
| 2108 14 | 6" | 150 | 16 | 12.82 kg |
| 2108 16 | 8" | 200 | 10 | 17.48 kg |
| 2108 18 | 10" | 250 | 10 | 28.89 kg |
| 2108 20 | 12" | 300 | 10 | 50.90 kg |
*The 12" (DN 300) size is operated by manual reducer.
€62.60
Tax excluded
