Carbon steel 1.0619 (WCB) steam trap. Stainless steel internal parts. Internal thermostatic air eliminator. High durability and easy maintenance. Application: steam pipelines drainage. Flanged ends according to EN 1092-1 PN16. DN25: single seat; DN40-50: double seat.
Working conditions:
- Horizontal installation (see the indication arrow).
- See arrow of flow direction.
- Maximum body design pressure: PN16.
- Maximum allowable pressure (PMA): 16 bar at 120ºC.
- Maximum allowable temperature (TMA): 250ºC at 12 bar.
- Limit working conditions for saturated steam: 14 bar at 200ºC.
- Maximum differential pressure: model 045 ΔP: max. 4.5 bar; model 100: ΔP max. 10 bar.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 2287 06 045 | 1" | 9.82 kg |
| 2287 06 100 | 1" | 9.95 kg |
| 2287 08 045 | 1 1/2" | 27.03 kg |
| 2287 08 100 | 1 1/2" | 26.94 kg |
| 2287 09 045 | 2" | 28.10 kg |
| 2287 09 100 | 2" | 27.81 kg |

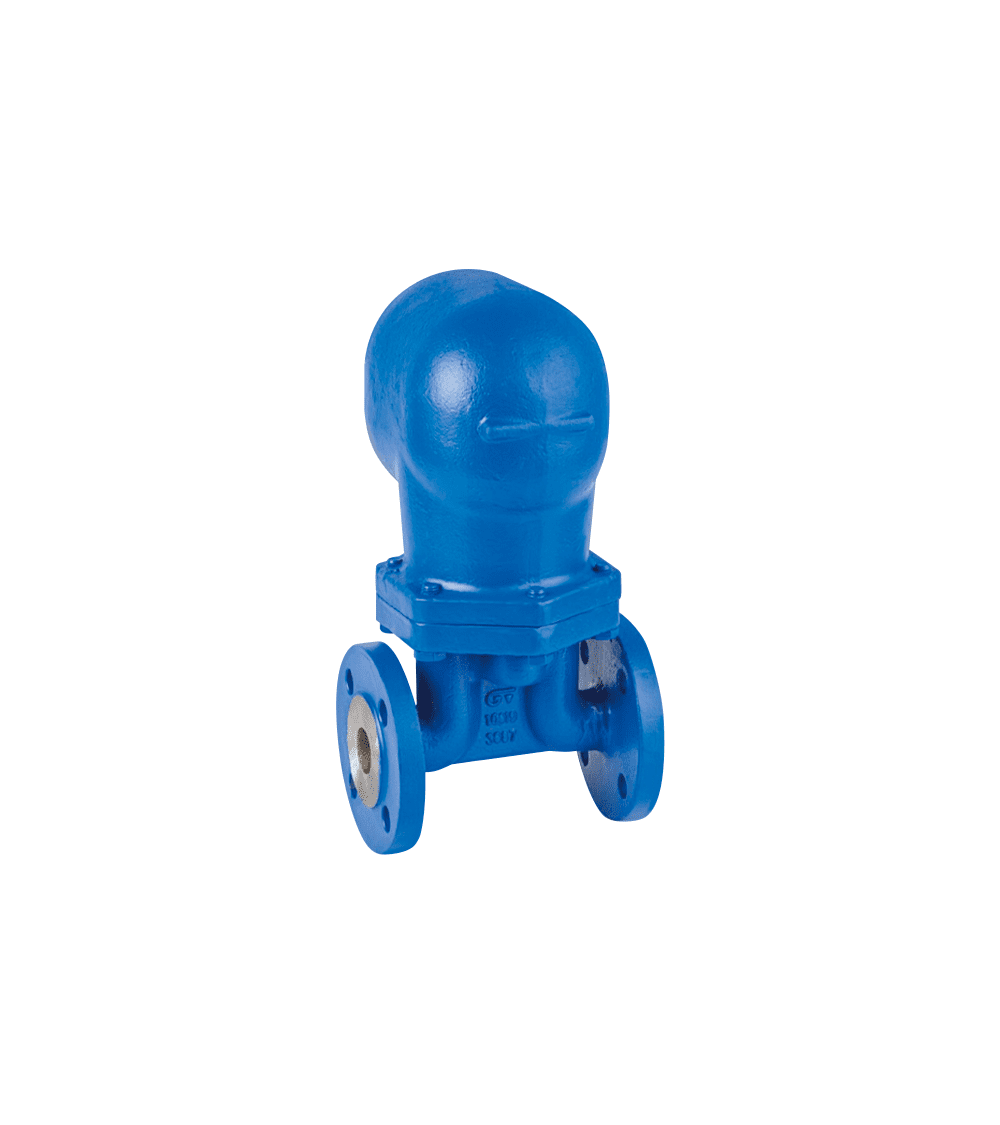

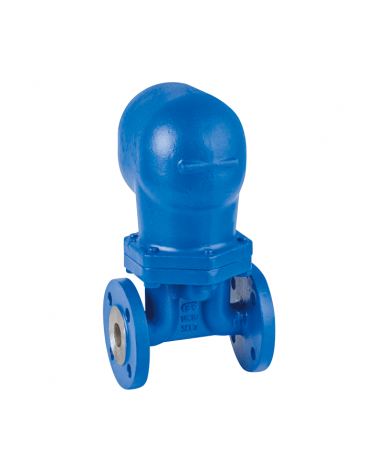

Closed float steam trap (high discharge capacity) with EN 1092-1 flanged ends
Carbon steel 1.0619 (WCB) steam trap. Stainless steel internal parts. Internal thermostatic air eliminator. High durability and easy maintenance. Application: steam pipelines drainage. Flanged ends according to EN 1092-1 PN16. DN25: single seat; DN40-50: double seat.
Working conditions:
- Horizontal installation (see the indication arrow).
- See arrow of flow direction.
- Maximum body design pressure: PN16.
- Maximum allowable pressure (PMA): 16 bar at 120ºC.
- Maximum allowable temperature (TMA): 250ºC at 12 bar.
- Limit working conditions for saturated steam: 14 bar at 200ºC.
- Maximum differential pressure: model 045 ΔP: max. 4.5 bar; model 100: ΔP max. 10 bar.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 2287 06 045 | 1" | 9.82 kg |
| 2287 06 100 | 1" | 9.95 kg |
| 2287 08 045 | 1 1/2" | 27.03 kg |
| 2287 08 100 | 1 1/2" | 26.94 kg |
| 2287 09 045 | 2" | 28.10 kg |
| 2287 09 100 | 2" | 27.81 kg |
€376.11
