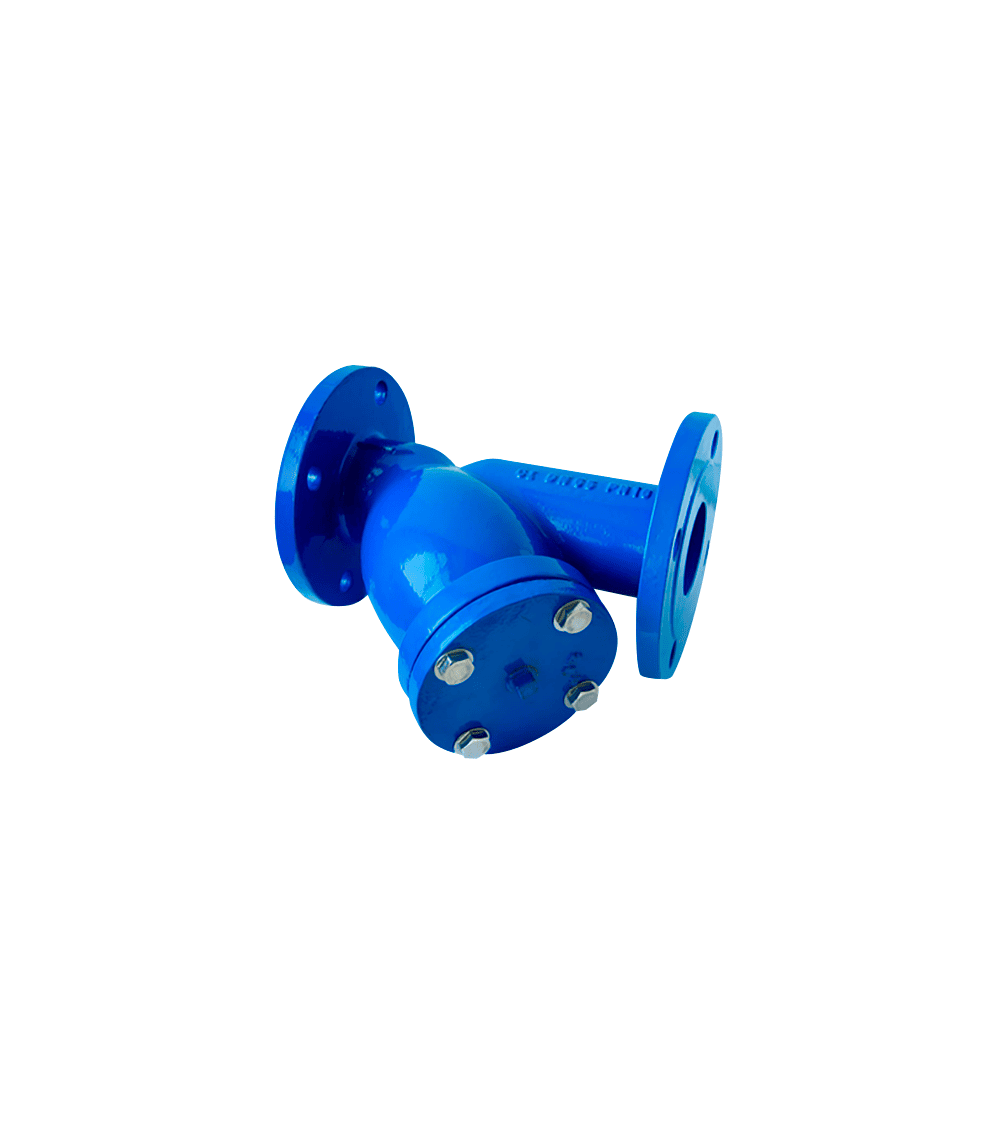

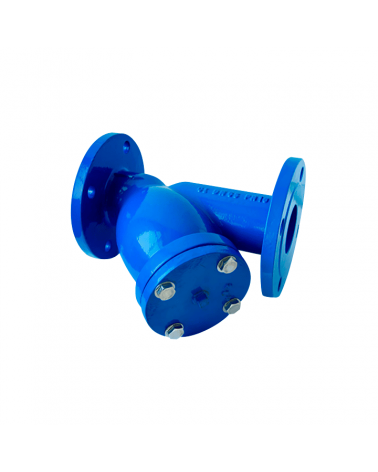

Y-filter

"Y" filters for efficient retention of the elements in suspension in the fluid. It has a purge plug for quick and efficient cleaning of the retained elements and is 100% watertight. Working temperature between -10ºC and 90ºC. Working pressure: PN10/PN16. Purge plug for easy cleaning. Body in ductile iron GJS-450-10. AISI 304 stainless steel screen. Face to face distance DIN 3202 F1.

NBR gasket to consult.

REFERENCESIZEØ SCREEN HOLESWEIGHT
43A.040.11 DN 40 1.5 3 kg
43A.050.11 DN 50 1.5 5 kg
43A.065.11 DN 65 1.5 7 kg
43A.080.11 DN 80 1.5 9.6 kg
43A.100.11 DN 100 1.5 12.5 kg
43A.125.11 DN 125 1.5 21 kg
43A.150.11 DN 150 1.5 24.2 kg
43A.200.11 DN 200 2 36 kg
43A.250.11 DN 250 2 57 kg
43A.300.11 DN 300 2 81 kg
43A.350.11 DN 350 2 125 kg
43A.400.11 DN 400 2 220 kg
43A.450.11 DN 450 2 360 kg
43A.500.11 DN 500 2 550 kg
43A.600.11 DN 600 2 695 kg

Size: DN40
Pressure: 10 bar
Quantity
