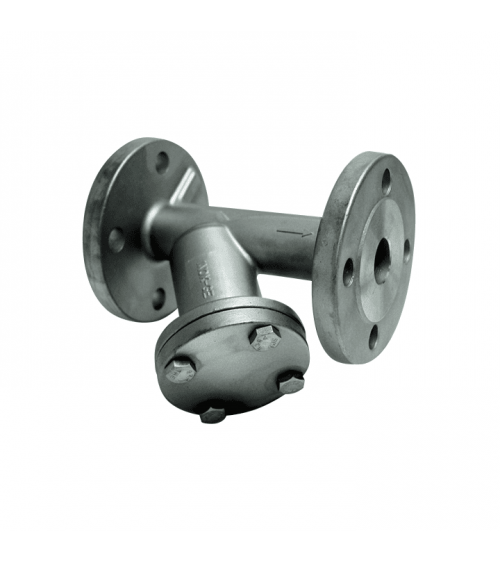

"Y" strainer with flanged ends according to ANSI B 16.5 serie 150. Made of stainless steel 1.4408 (CF8M). Drain plug G1/2". Maximum working pressure: 19 bar. Working temperature: -30ºC +240ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2461A 09 | 2" | 19 | 7.32 kg |
| 2461A 10 | 2 1/2" | 19 | 11.36 kg |
| 2461A 11 | 3" | 19 | 14.66 kg |
| 2461A 12 | 4" | 19 | 23.20 kg |
| 2461A 14 | 6" | 19 | 40.60 kg |
| 2461A 16 | 8" | 19 | 71.04 kg |

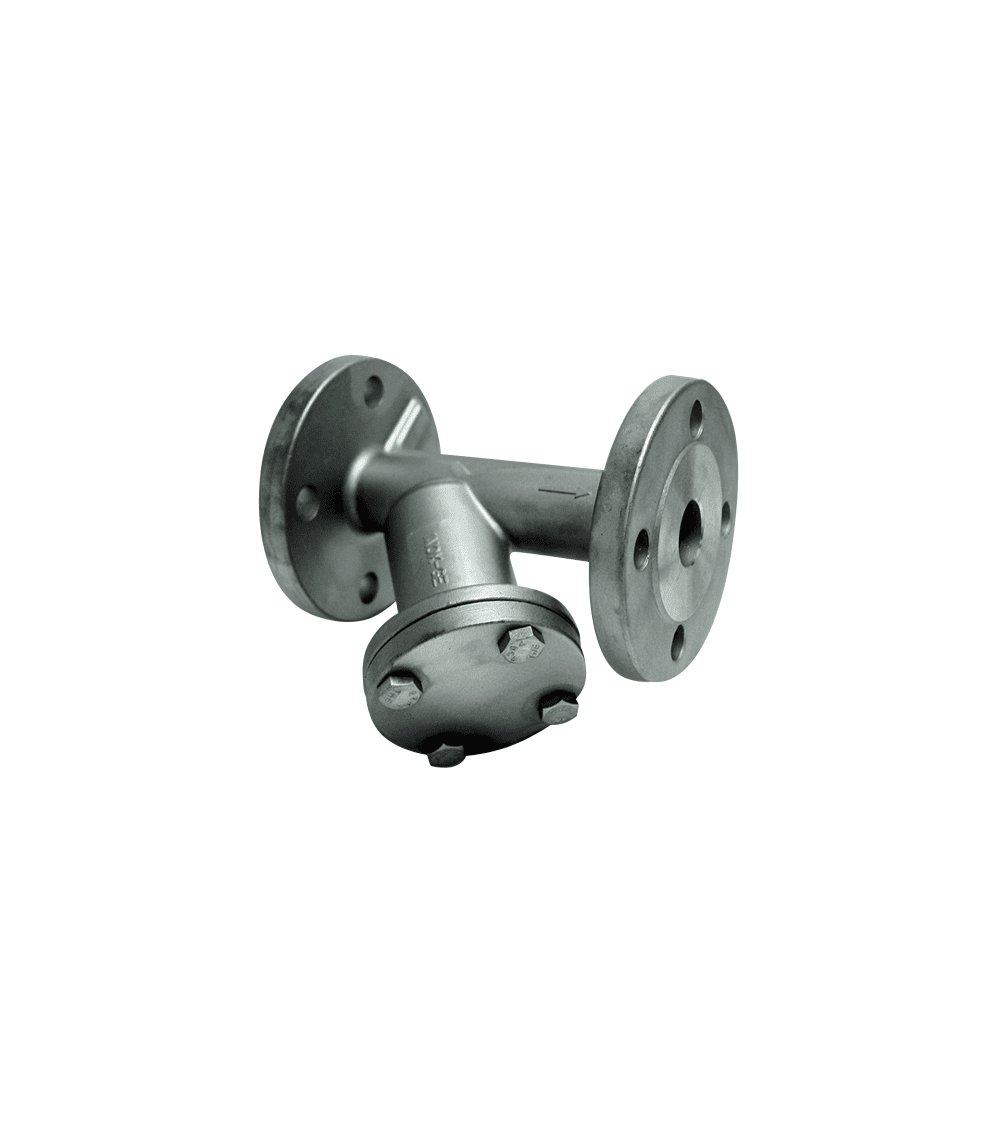

Y-strainer - ANSI flanges
"Y" strainer with flanged ends according to ANSI B 16.5 serie 150. Made of stainless steel 1.4408 (CF8M). Drain plug G1/2". Maximum working pressure: 19 bar. Working temperature: -30ºC +240ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2461A 09 | 2" | 19 | 7.32 kg |
| 2461A 10 | 2 1/2" | 19 | 11.36 kg |
| 2461A 11 | 3" | 19 | 14.66 kg |
| 2461A 12 | 4" | 19 | 23.20 kg |
| 2461A 14 | 6" | 19 | 40.60 kg |
| 2461A 16 | 8" | 19 | 71.04 kg |
€577.45
Tax excluded
