"Y" strainer with flanged ends according to ANSI B16.42 class 150. Made of ductile iron ASTM A536. External coating of heat resistant paint. Screen made of AISI 304 stainless steel. Body/cover gasket made of stainless steel + graphite. Drain plug with copper gasket. Maximum working pressure: 17 bar (250 psi). Working temperature: -29ºC +260ºC.
| REFERENCE | DN | SIZE | PN | WEIGHT |
|---|---|---|---|---|
| 2459A 09 | 50 | 2" | 17 | 10 kg |
| 2459A 10 | 65 | 2 1/2" | 17 | 13 kg |
| 2459A 11 | 80 | 3" | 17 | 18 kg |
| 2459A 12 | 100 | 4" | 17 | 25 kg |
| 2459A 13 | 125 | 5" | 17 | 34 kg |
| 2459A 14 | 150 | 6" | 17 | 46 kg |
| 2459A 16 | 200 | 8" | 17 | 77 kg |

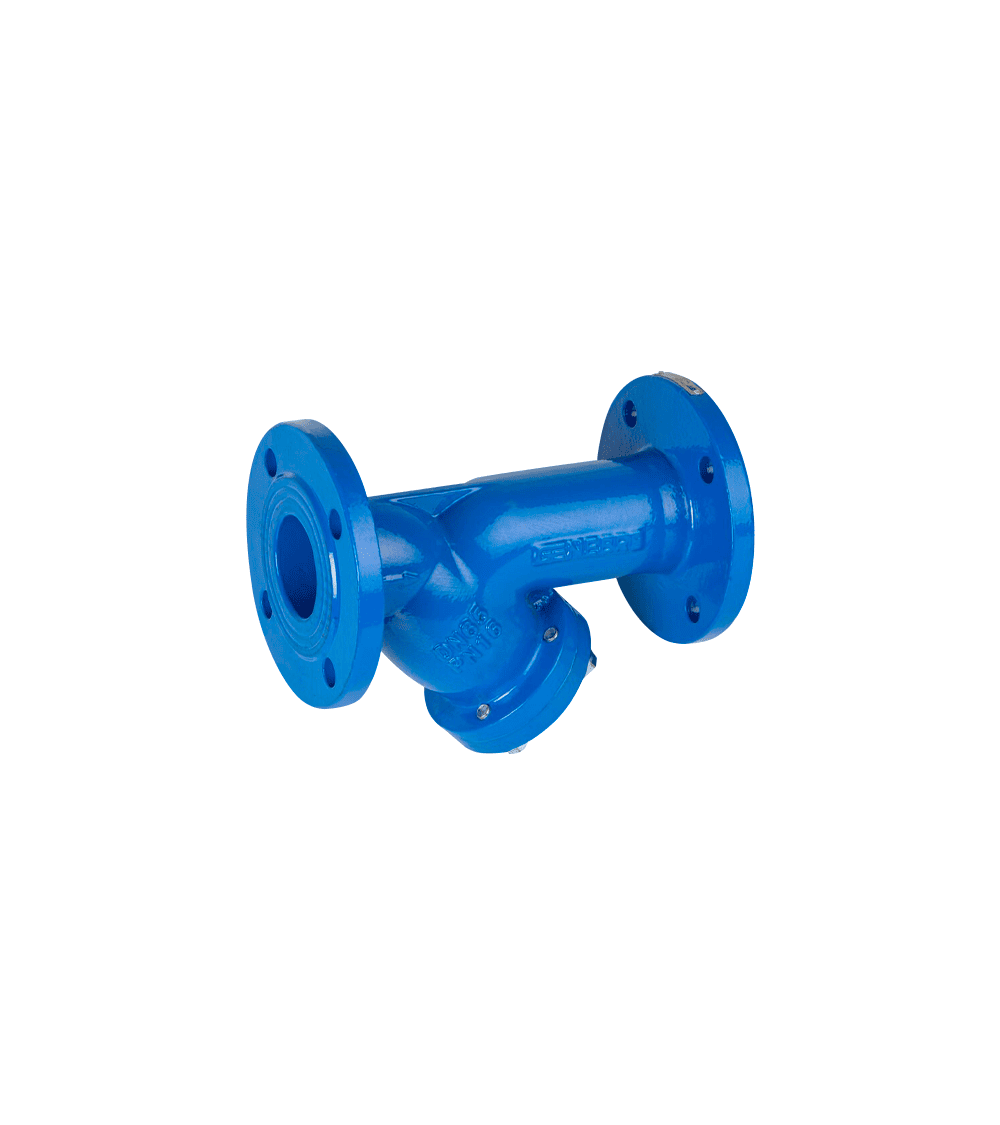

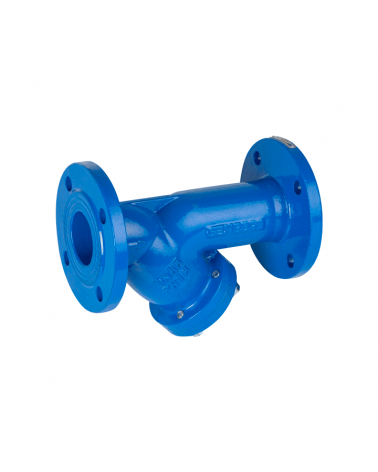

Y-strainer with ANSI flanged ends
"Y" strainer with flanged ends according to ANSI B16.42 class 150. Made of ductile iron ASTM A536. External coating of heat resistant paint. Screen made of AISI 304 stainless steel. Body/cover gasket made of stainless steel + graphite. Drain plug with copper gasket. Maximum working pressure: 17 bar (250 psi). Working temperature: -29ºC +260ºC.
| REFERENCE | DN | SIZE | PN | WEIGHT |
|---|---|---|---|---|
| 2459A 09 | 50 | 2" | 17 | 10 kg |
| 2459A 10 | 65 | 2 1/2" | 17 | 13 kg |
| 2459A 11 | 80 | 3" | 17 | 18 kg |
| 2459A 12 | 100 | 4" | 17 | 25 kg |
| 2459A 13 | 125 | 5" | 17 | 34 kg |
| 2459A 14 | 150 | 6" | 17 | 46 kg |
| 2459A 16 | 200 | 8" | 17 | 77 kg |
€91.75
Tax excluded
