Full bore threaded gate valve, for drinking water supply, irrigation, hydraulic and civil works... It has minimum pressure loss, 100% watertight and can be disassembled with the installation under load. Bidirectional flow. Guided gate for easy closing. Screws protected against external agents. WRAS certified for contact with drinking water. EN 1074-2 certified. Working pressure: PN10/PN16. Working temperature between -10°C and 90°C. Body and bonnet in cast iron GJS-400-15. Brass + vulcanized EPDM gate. Stem in AISI 420 stainless steel. Brass nut.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 12A.020.111181 | DN 20 / 3/4" | 3 kg |
| 12A.025.111181 | DN 25 / 1" | 3.30 kg |
| 12A.032.111181 | DN 32 / 1 1/4" | 3.80 kg |
| 12A.040.111181 | DN 40 / 1 1/2" | 4.50 kg |
| 12A.050.111181 | DN 50 / 2" | 5.30 kg |

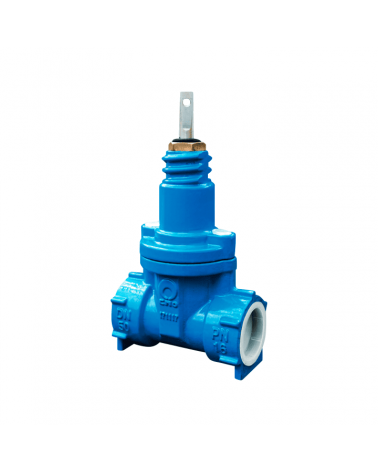

Gate valve with threaded connection
Full bore threaded gate valve, for drinking water supply, irrigation, hydraulic and civil works... It has minimum pressure loss, 100% watertight and can be disassembled with the installation under load. Bidirectional flow. Guided gate for easy closing. Screws protected against external agents. WRAS certified for contact with drinking water. EN 1074-2 certified. Working pressure: PN10/PN16. Working temperature between -10°C and 90°C. Body and bonnet in cast iron GJS-400-15. Brass + vulcanized EPDM gate. Stem in AISI 420 stainless steel. Brass nut.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 12A.020.111181 | DN 20 / 3/4" | 3 kg |
| 12A.025.111181 | DN 25 / 1" | 3.30 kg |
| 12A.032.111181 | DN 32 / 1 1/4" | 3.80 kg |
| 12A.040.111181 | DN 40 / 1 1/2" | 4.50 kg |
| 12A.050.111181 | DN 50 / 2" | 5.30 kg |
