Connection: 1" male thread ISO 7-1 (EN 10226-1). Suitable for pipes from 1" to 8". Maximum working pressure: 10 bar. Maximum flow temperature: 110ºC. Storage temperature: -20ºC +80ºC. Rated voltage/current: 250 VAC/10A. Protection rating: IP64. Galvanized aluminum alloy enclosure. Brass connector. Stainless steel blades. Copper-zinc alloy bellows. Adjustment screw, fixation screw and spring made of steel. Applicable to cool/heat fluid system.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2848 06 | R1" | 10 | 0.62 kg |

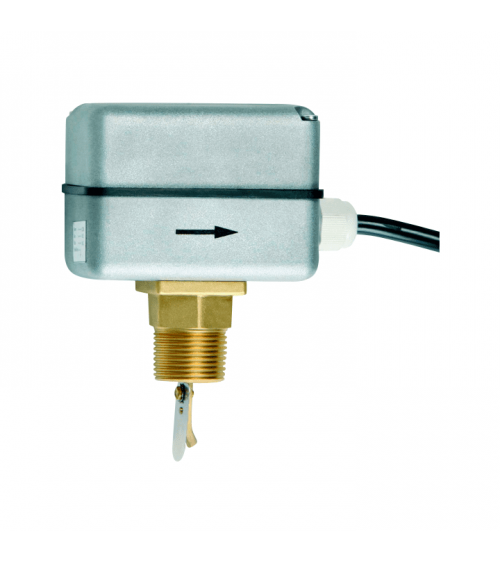

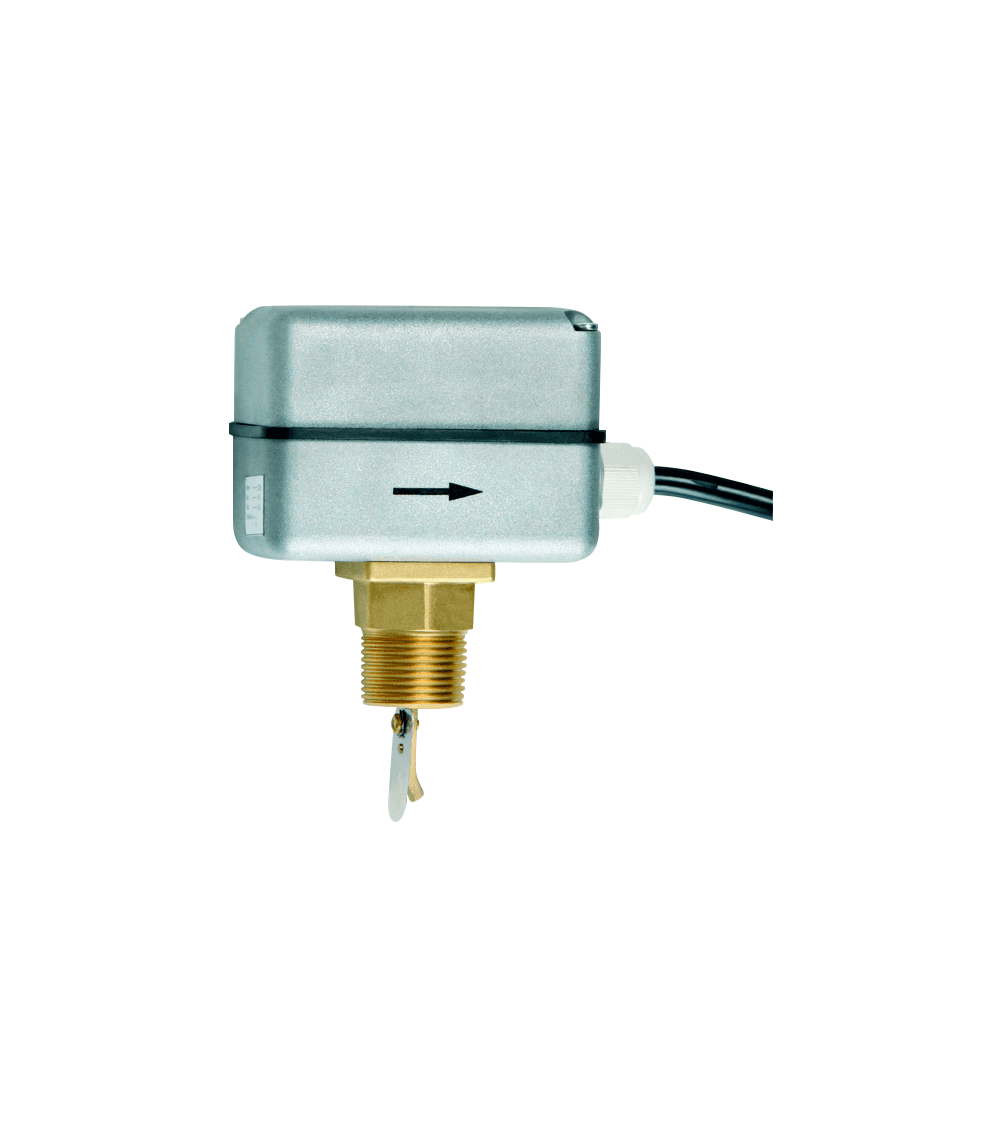

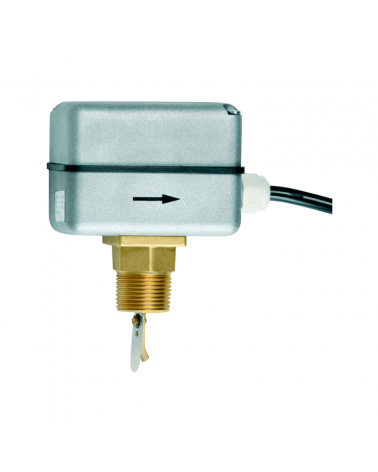

Flow controller (liquids)
Connection: 1" male thread ISO 7-1 (EN 10226-1). Suitable for pipes from 1" to 8". Maximum working pressure: 10 bar. Maximum flow temperature: 110ºC. Storage temperature: -20ºC +80ºC. Rated voltage/current: 250 VAC/10A. Protection rating: IP64. Galvanized aluminum alloy enclosure. Brass connector. Stainless steel blades. Copper-zinc alloy bellows. Adjustment screw, fixation screw and spring made of steel. Applicable to cool/heat fluid system.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2848 06 | R1" | 10 | 0.62 kg |
€86.59
Tax excluded
