Flanged two pieces ball valves, full bore, flanges class 150 and class 300, from 1/2" to 8". Stainless steel (A351 Gr. CF8M) body. AISI-316 ball and modified PTFE seats. Antistatic device. Locking device. Stem is according EN 15081. Valves are according with NACE MR01.75. Face-to-face according with ASME B16.10 Long Pattern. The valves are certified CE, ATEX, FIRE SAFE (according ISO 10497:2004) and FUGITIVE EMISSION (according ISO 15848-1:2006).
Fig. 415. 150 Lbs. Class 150:
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 415IIT15 | 1/2" (DN 15) | 1.7 kg |
| 415IIT20 | 3/4" (DN 20) | 2.2 kg |
| 415IIT25 | 1" (DN 25) | 2.9 kg |
| 415IIT40 | 1 1/2" (DN 40) | 6 kg |
| 415IIT50 | 2" (DN 50) | 8.5 kg |
| 415IIT65 | 2 1/2" (DN 65) | 13.3 kg |
| 415IIT80 | 3" (DN 80) | 18.5 kg |
| 415IIT100 | 4" (DN 100) | 29.3 kg |
| 415IIT150 | 6" (DN 150) | 64.5 kg |
| 415IIT200 | 8" (DN 200) | 123.2 kg |
Fig. 430. 300 Lbs. Class 300:
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 430IIT15 | 1/2" (DN 15) | 2.4 kg |
| 430IIT20 | 3/4" (DN 20) | 3.5 kg |
| 430IIT25 | 1" (DN 25) | 4.6 kg |
| 430IIT40 | 1 1/2" (DN 40) | 9.2 kg |
| 430IIT50 | 2" (DN 50) | 11.5 kg |
| 430IIT80 | 3" (DN 80) | 25 kg |
| 430IIT100 | 4" (DN 100) | 39.5 kg |
| 430IIT150 | 6" (DN 150) | 88.1 kg |

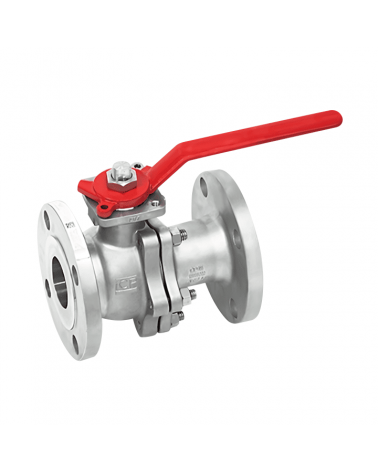

Full bore ball valve 2 pieces
Flanged two pieces ball valves, full bore, flanges class 150 and class 300, from 1/2" to 8". Stainless steel (A351 Gr. CF8M) body. AISI-316 ball and modified PTFE seats. Antistatic device. Locking device. Stem is according EN 15081. Valves are according with NACE MR01.75. Face-to-face according with ASME B16.10 Long Pattern. The valves are certified CE, ATEX, FIRE SAFE (according ISO 10497:2004) and FUGITIVE EMISSION (according ISO 15848-1:2006).
Fig. 415. 150 Lbs. Class 150:
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 415IIT15 | 1/2" (DN 15) | 1.7 kg |
| 415IIT20 | 3/4" (DN 20) | 2.2 kg |
| 415IIT25 | 1" (DN 25) | 2.9 kg |
| 415IIT40 | 1 1/2" (DN 40) | 6 kg |
| 415IIT50 | 2" (DN 50) | 8.5 kg |
| 415IIT65 | 2 1/2" (DN 65) | 13.3 kg |
| 415IIT80 | 3" (DN 80) | 18.5 kg |
| 415IIT100 | 4" (DN 100) | 29.3 kg |
| 415IIT150 | 6" (DN 150) | 64.5 kg |
| 415IIT200 | 8" (DN 200) | 123.2 kg |
Fig. 430. 300 Lbs. Class 300:
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 430IIT15 | 1/2" (DN 15) | 2.4 kg |
| 430IIT20 | 3/4" (DN 20) | 3.5 kg |
| 430IIT25 | 1" (DN 25) | 4.6 kg |
| 430IIT40 | 1 1/2" (DN 40) | 9.2 kg |
| 430IIT50 | 2" (DN 50) | 11.5 kg |
| 430IIT80 | 3" (DN 80) | 25 kg |
| 430IIT100 | 4" (DN 100) | 39.5 kg |
| 430IIT150 | 6" (DN 150) | 88.1 kg |
€110.00
Tax excluded
