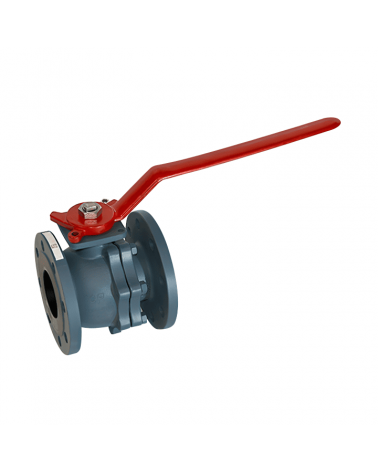

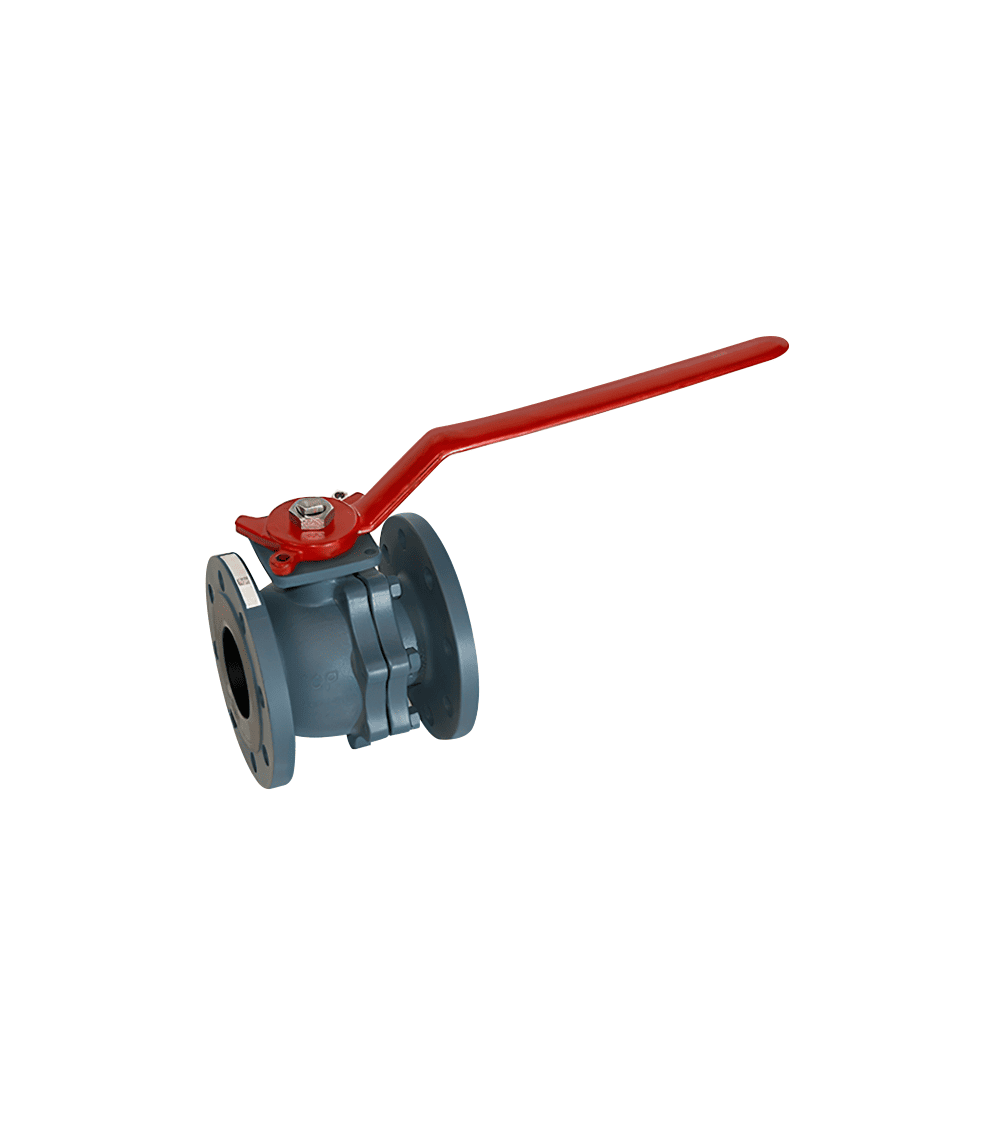

Full bore ball valve 2 pieces

Flanged two pieces ball valves, full bore, flanges PN40 and PN16, from DN15 to DN200. Carbon steel (1.0619) body. AISI-316 ball and modified PTFE seats. Antistatic device. Locking device. Stem is according EN 15081. Face-to-face according with EN 558-1 SERIE 27 (DIN 3202 F18). The valves are certified CE, ATEX, FIRE SAFE (according ISO 10497:2004) and FUGITIVE EMISSION (according ISO 15848-1:2006).

Fig. 254. PN40:

REFERENCESIZEPNWEIGHT
254AIT15 DN 15 40 2.4 kg
254AIT20 DN 20 40 3.2 kg
254AIT25 DN 25 40 4.1 kg
254AIT32 DN 32 40 5.8 kg
254AIT40 DN 40 40 8.1 kg
254AIT50 DN 50 40 10.6 kg
254AIT65 DN 65 40 14.8 kg
254AIT80 DN 80 40 20.6 kg
254AIT100 DN 100 40 29.2 kg
254AIT125 DN 125 40 53.6 kg
254AIT150 DN 150 40 74.7 kg

Fig. 256. PN16:

REFERENCESIZEPNWEIGHT
256AIT65 DN 65 16 13.3 kg
256AIT80 DN 80 16 19.1 kg
256AIT100 DN 100 16 25.6 kg
256AIT125 DN 125 16 47.6 kg
256AIT150 DN 150 16 63.5 kg
256AIT200 DN 200 16 115.3 kg

TECHNICAL DATA

€82.00
Tax excluded
Size: DN15
Pressure: 40 bar
Quantity
CONSULT DELIVERY TIME
