F-F cross thread, manufactured in stainless steel 316 microfusion. BSP threads according to ISO 7-1 (EN 10226-1). Dimensions according to standard ISO 4144. Maximum working pressure: 20 bar (S-150). Working temperature: -20ºC to 220ºC.
| REFERENCE | SIZE |
|---|---|
| 0180 02 | 1/4" |
| 0180 03 | 3/8" |
| 0180 04 | 1/2" |
| 0180 05 | 3/4" |
| 0180 06 | 1" |
| 0180 07 | 1 1/4" |
| 0180 08 | 1 1/2" |
| 0180 09 | 2" |

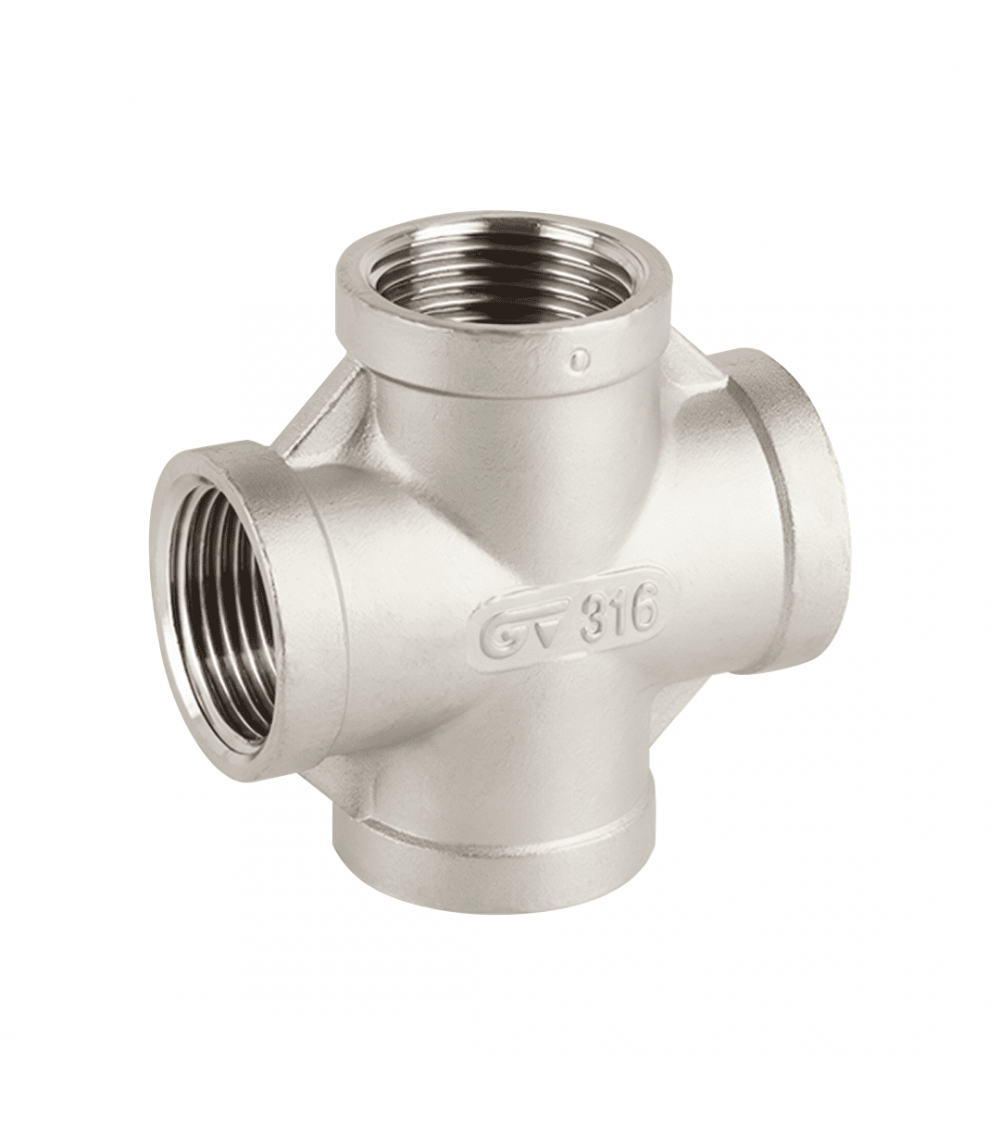

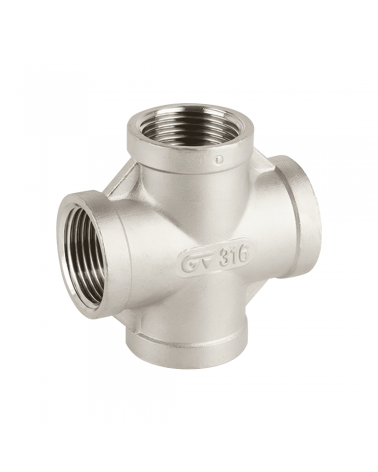

Cross with BSP thread
F-F cross thread, manufactured in stainless steel 316 microfusion. BSP threads according to ISO 7-1 (EN 10226-1). Dimensions according to standard ISO 4144. Maximum working pressure: 20 bar (S-150). Working temperature: -20ºC to 220ºC.
| REFERENCE | SIZE |
|---|---|
| 0180 02 | 1/4" |
| 0180 03 | 3/8" |
| 0180 04 | 1/2" |
| 0180 05 | 3/4" |
| 0180 06 | 1" |
| 0180 07 | 1 1/4" |
| 0180 08 | 1 1/2" |
| 0180 09 | 2" |
€5.78
Tax excluded
