Fitting type F. Stainless steel construction 1.4408 (CF8M), with male Camlock to male thread ISO 7-1 (EN 10226-1). Compatible with A-A-59326D standard couplings. Maximum working pressure: 10 bar (150 psi). Working temperature according to gasket material, -20ºC to 100ºC with NBR gasket.
| REFERENCE | SIZE |
|---|---|
| 0450 04 | 1/2" |
| 0450 05 | 3/4" |
| 0450 06 | 1" |
| 0450 07 | 1 1/4" |
| 0450 08 | 1 1/2" |
| 0450 09 | 2" |
| 0450 10 | 2 1/2" |
| 0450 11 | 3" |
| 0450 12 | 4" |

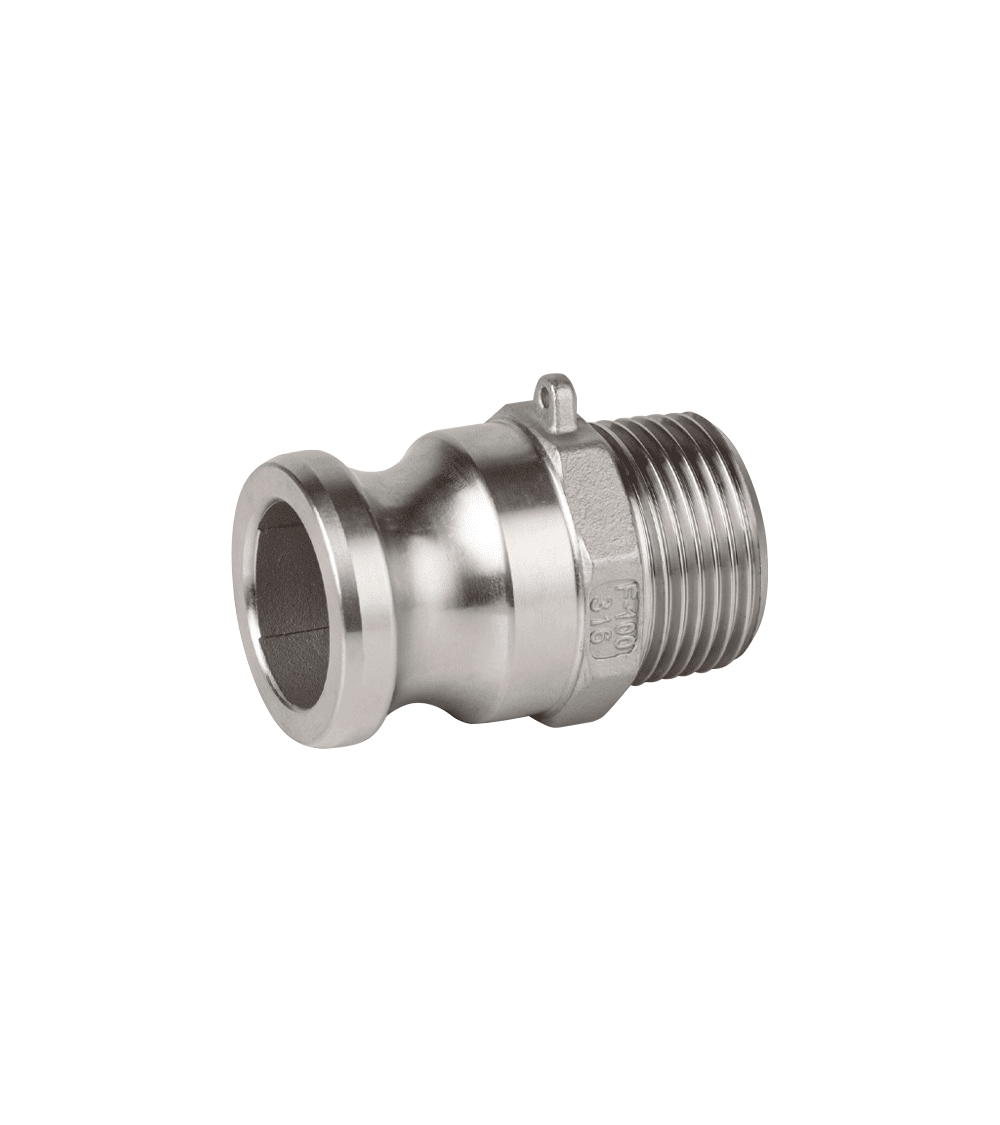

Fitting type F: male Camlock-male thread
Fitting type F. Stainless steel construction 1.4408 (CF8M), with male Camlock to male thread ISO 7-1 (EN 10226-1). Compatible with A-A-59326D standard couplings. Maximum working pressure: 10 bar (150 psi). Working temperature according to gasket material, -20ºC to 100ºC with NBR gasket.
| REFERENCE | SIZE |
|---|---|
| 0450 04 | 1/2" |
| 0450 05 | 3/4" |
| 0450 06 | 1" |
| 0450 07 | 1 1/4" |
| 0450 08 | 1 1/2" |
| 0450 09 | 2" |
| 0450 10 | 2 1/2" |
| 0450 11 | 3" |
| 0450 12 | 4" |
€5.59
Tax excluded
