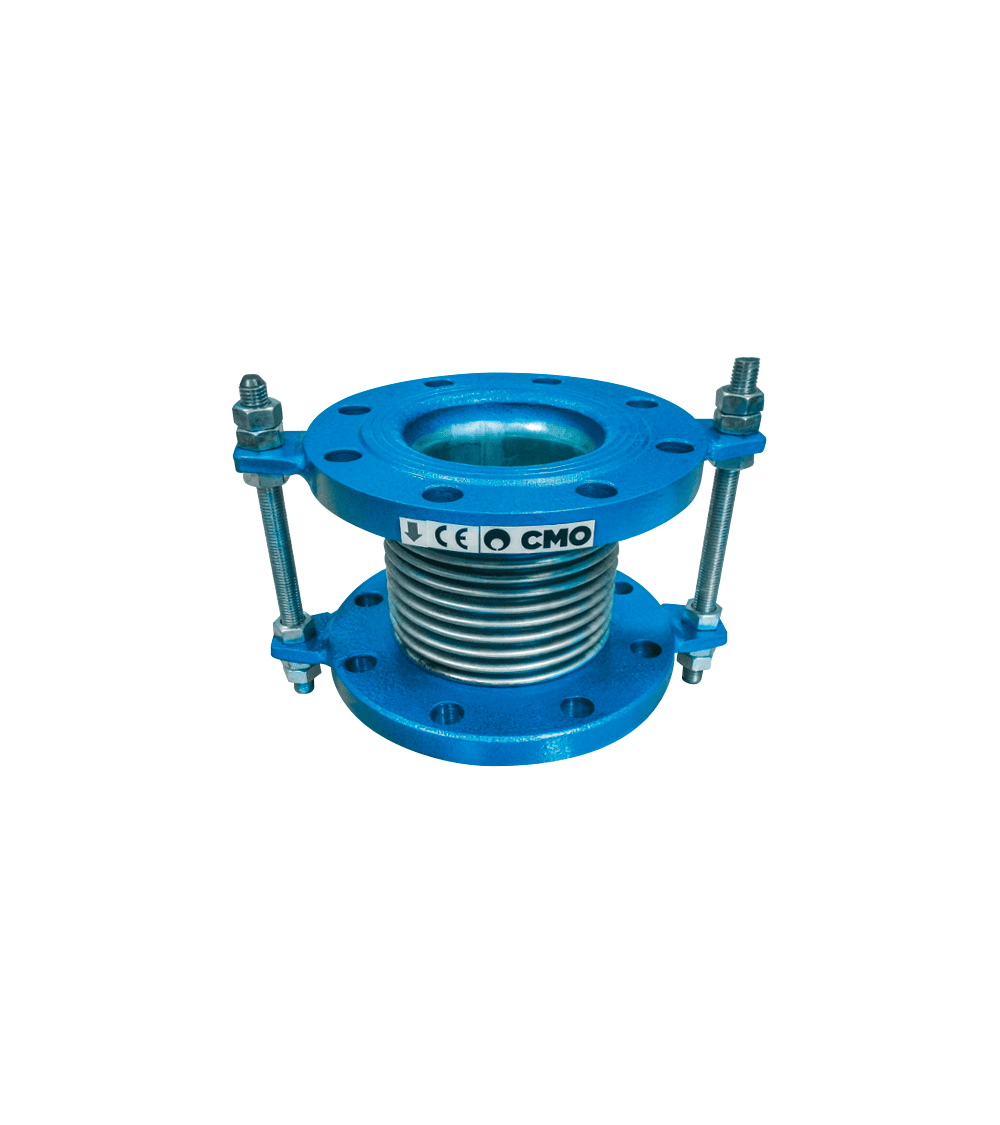

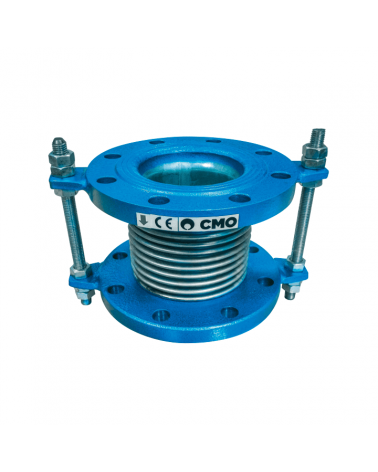

Flanged metal compensators

Metal expansion joints for high temperature applications to absorb axial expansions, vibrations and small misalignments in the pipe. Lateral flanges according to ISO 7005-2. Low pressure loss. 100% watertight. High longitudinal mobility. Maximum working pressure according to design pressure PN10/PN16. Working temperature between -90°C and 400°C. Waves in AISI 304 stainless steel. Carbon steel flanges.

REFERENCESIZEWEIGHT
42A.032.21 DN 32 4.9 kg
42A.040.21 DN 40 5.5 kg
42A.050.21 DN 50 6.9 kg
42A.065.21 DN 65 9.2 kg
42A.080.21 DN 80 10 kg
42A.100.21 DN 100 12 kg
42A.125.21 DN 125 14.3 kg
42A.150.21 DN 150 18.9 kg
42A.200.21 DN 200 24.7 kg
42A.250.21 DN 250 33.3 kg
42A.300.21 DN 300 44.2 kg
42A.350.21 DN 350 57.6 kg
42A.400.21 DN 400 72.8 kg
42A.450.21 DN 450 89.4 kg
42A.500.21 DN 500 127.2 kg
42A.600.21 DN 600 190.4 kg

TECHNICAL DATA

Size: DN32
Pressure: 10 bar
Quantity
