Metal expansion joint with flanged ends according to EN 1092 PN16. Body made of stainless steel 1.4301 (AISI 304). Carbon steel flanges with anti-caloric paint. Reduced vibration. Movement limiting straps to prevent breakage due to overcompensation (from 2" and above). Inner sleeve to avoid excessive load losses and possible accumulation of product inside the bellows which reduces its working capacity. Unidirectional design (see arrow of flow direction). Maximum working pressure: 16 bar. Working temperature: -40ºC +300ºC.
| REFERENCE | SIZE | DN | PN | WEIGHT |
|---|---|---|---|---|
| 2835E 06 | 1" | 25 | 16 | 2.29 kg |
| 2835E 07 | 1 1/4" | 32 | 16 | 3.30 kg |
| 2835E 08 | 1 1/2" | 40 | 16 | 3.77 kg |
| 2835E 09 | 2" | 50 | 16 | 6.14 kg |
| 2835E 10 | 2 1/2" | 65 | 16 | 7.99 kg |
| 2835E 11 | 3" | 80 | 16 | 8.83 kg |
| 2835E 12 | 4" | 100 | 16 | 10.93 kg |
| 2835E 13 | 5" | 125 | 16 | 14.86 kg |
| 2835E 14 | 6" | 150 | 16 | 20.42 kg |
| 2835E 16 | 8" | 200 | 16 | 25.32 kg |

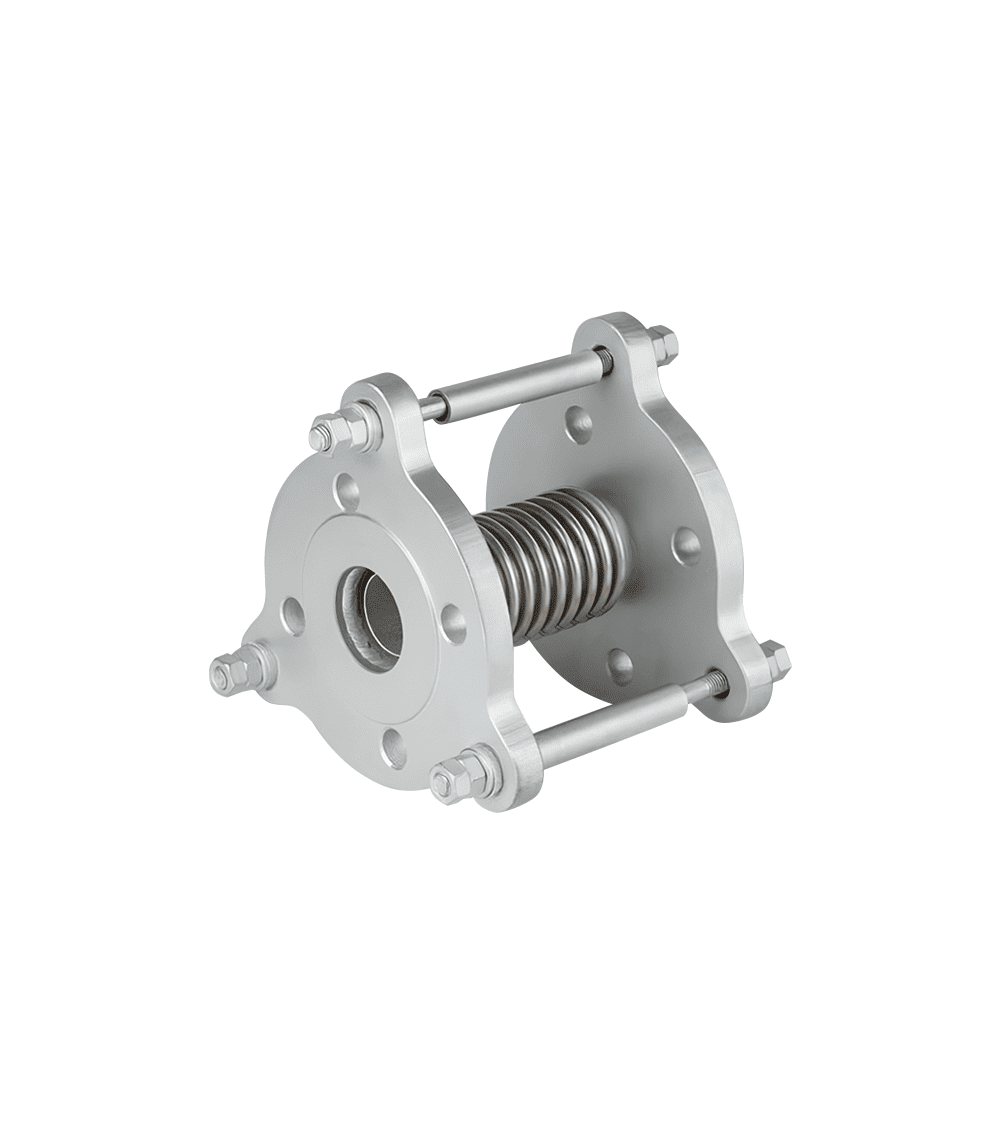

Metal expansion joint - flanged ends
Metal expansion joint with flanged ends according to EN 1092 PN16. Body made of stainless steel 1.4301 (AISI 304). Carbon steel flanges with anti-caloric paint. Reduced vibration. Movement limiting straps to prevent breakage due to overcompensation (from 2" and above). Inner sleeve to avoid excessive load losses and possible accumulation of product inside the bellows which reduces its working capacity. Unidirectional design (see arrow of flow direction). Maximum working pressure: 16 bar. Working temperature: -40ºC +300ºC.
| REFERENCE | SIZE | DN | PN | WEIGHT |
|---|---|---|---|---|
| 2835E 06 | 1" | 25 | 16 | 2.29 kg |
| 2835E 07 | 1 1/4" | 32 | 16 | 3.30 kg |
| 2835E 08 | 1 1/2" | 40 | 16 | 3.77 kg |
| 2835E 09 | 2" | 50 | 16 | 6.14 kg |
| 2835E 10 | 2 1/2" | 65 | 16 | 7.99 kg |
| 2835E 11 | 3" | 80 | 16 | 8.83 kg |
| 2835E 12 | 4" | 100 | 16 | 10.93 kg |
| 2835E 13 | 5" | 125 | 16 | 14.86 kg |
| 2835E 14 | 6" | 150 | 16 | 20.42 kg |
| 2835E 16 | 8" | 200 | 16 | 25.32 kg |
€115.60
Tax excluded
