Expansion joint. Noise reduction. Vibration absortion. Dilatation compensation. Easy installation. EPDM body, carbon steel ends. Threaded ends according to ISO 7-1 (EN 10226-1). Maximum working pressure: 10 bar. Maximum depression (vacuum): 400 mbar. Working temperature: -10ºC +105ºC. Burst pressure: 30 bar.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2830 05 | 3/4" | 10 | 0.66 kg |
| 2830 06 | 1" | 10 | 1.16 kg |
| 2830 07 | 1 1/4" | 10 | 1.42 kg |
| 2830 08 | 1 1/2" | 10 | 1.82 kg |
| 2830 09 | 2" | 10 | 2.51 kg |
| 2830 10 | 2 1/2" | 10 | 3.90 kg |
| 2830 11 | 3" | 10 | 5.49 kg |

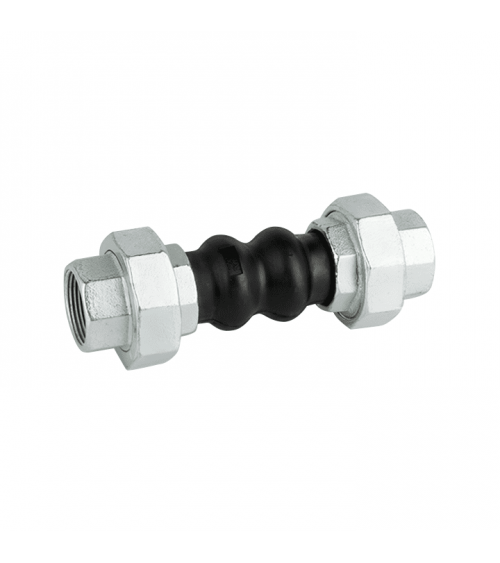

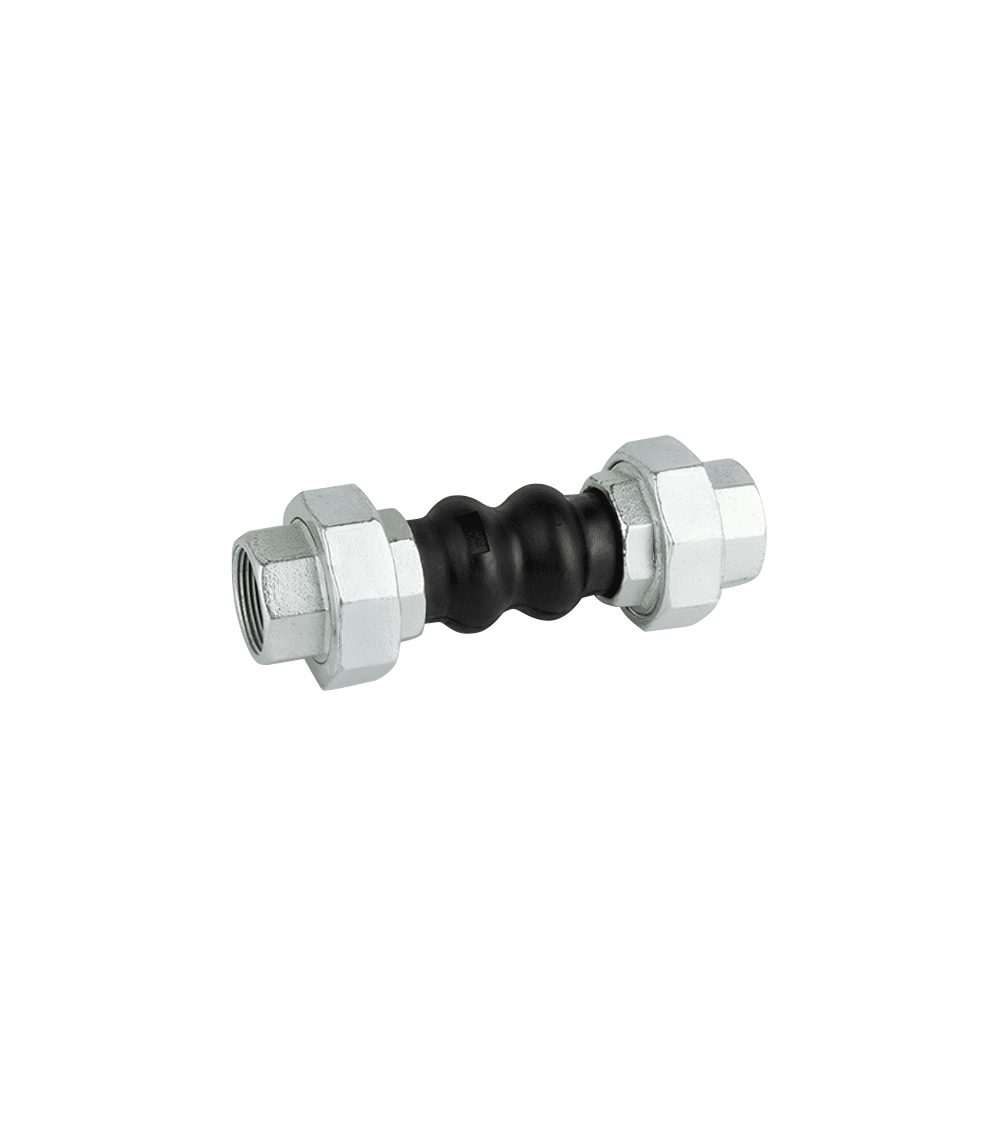

Double wave expansion joint
Expansion joint. Noise reduction. Vibration absortion. Dilatation compensation. Easy installation. EPDM body, carbon steel ends. Threaded ends according to ISO 7-1 (EN 10226-1). Maximum working pressure: 10 bar. Maximum depression (vacuum): 400 mbar. Working temperature: -10ºC +105ºC. Burst pressure: 30 bar.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2830 05 | 3/4" | 10 | 0.66 kg |
| 2830 06 | 1" | 10 | 1.16 kg |
| 2830 07 | 1 1/4" | 10 | 1.42 kg |
| 2830 08 | 1 1/2" | 10 | 1.82 kg |
| 2830 09 | 2" | 10 | 2.51 kg |
| 2830 10 | 2 1/2" | 10 | 3.90 kg |
| 2830 11 | 3" | 10 | 5.49 kg |
€17.88
Tax excluded
