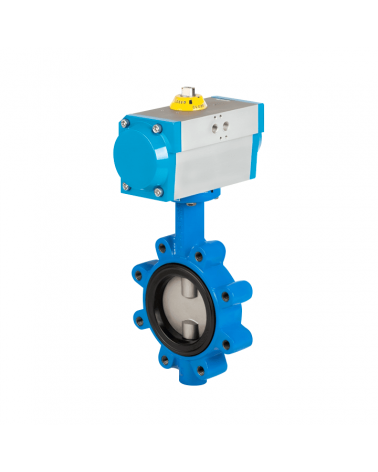

LUG type butterfly valve (ANSI flanges) (REF. 2108A) with Gen-Air double-acting pneumatic actuator. Nodular cast iron body EN-GJS-400 (GGG-40) for mounting between ANSI 125/150 flanges. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Actuator mounting flange to ISO 5211. Length between faces according to EN 558-1 series 20 (DIN 3202 K1). Painted with Epoxy paint. Maximum working pressure: 16 bar up to 12" and 10 bar from 14". Working temperature: -20ºC +120ºC. From 12" upwards, operation by means of manual reducer.
| REFERENCE | SIZE | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5508A 09 48 | 2" | GN-15 | 6.63 kg |
| 5508A 10 48 | 2 1/2" | GN-15 | 7.76 kg |
| 5508A 11 53 | 3" | GN-17 | 6.63 kg |
| 5508A 12 64 | 4" | GN-20 | 11.83 kg |
| 5508A 13 65 | 5" | GN-25 | 15.17 kg |
| 5508A 14 65 | 6" | GN-25 | 17.30 kg |
| 5508A 16 67 | 8" | GN-35 | 25.78 kg |
| 5508A 18 68 | 10" | GN-40 | 37.50 kg |
| 5508A 20 69 | 12" | GN-45 | 56.90 kg |
| 5508A 22 57 | 14" | GN-60 | 99 kg |
| 5508A 24 54 | 16" | GN-60 | 130.20 kg |
| 5508A 26 58 | 18" | GN-65 | 189.80 kg |
| 5508A 28 100 | 20" | GN-70 | 247.50 kg |
Butterfly valve type LUG (ANSI flanges) with double-acting pneumatic actuator

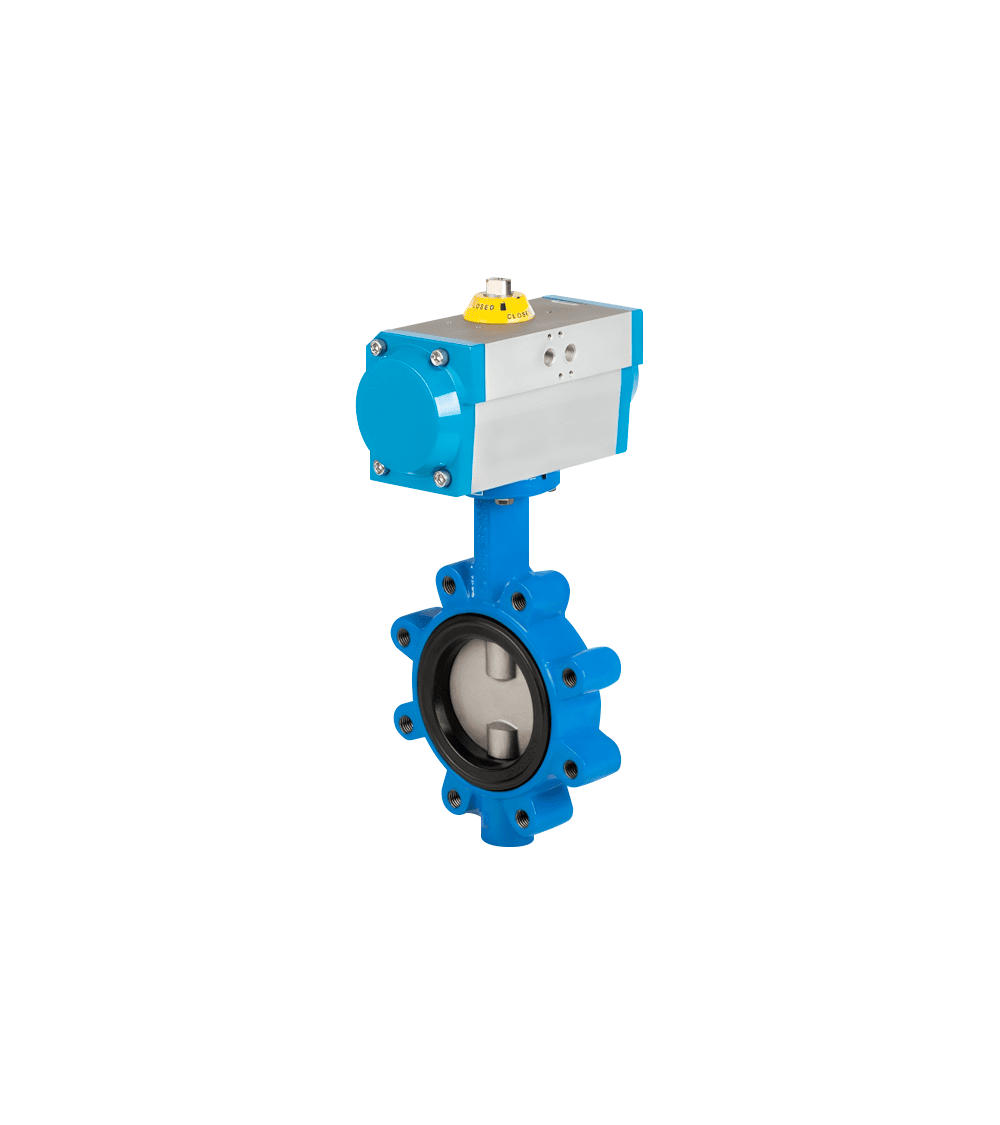

LUG type butterfly valve (ANSI flanges) (REF. 2108A) with Gen-Air double-acting pneumatic actuator. Nodular cast iron body EN-GJS-400 (GGG-40) for mounting between ANSI 125/150 flanges. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Actuator mounting flange to ISO 5211. Length between faces according to EN 558-1 series 20 (DIN 3202 K1). Painted with Epoxy paint. Maximum working pressure: 16 bar up to 12" and 10 bar from 14". Working temperature: -20ºC +120ºC. From 12" upwards, operation by means of manual reducer.
| REFERENCE | SIZE | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5508A 09 48 | 2" | GN-15 | 6.63 kg |
| 5508A 10 48 | 2 1/2" | GN-15 | 7.76 kg |
| 5508A 11 53 | 3" | GN-17 | 6.63 kg |
| 5508A 12 64 | 4" | GN-20 | 11.83 kg |
| 5508A 13 65 | 5" | GN-25 | 15.17 kg |
| 5508A 14 65 | 6" | GN-25 | 17.30 kg |
| 5508A 16 67 | 8" | GN-35 | 25.78 kg |
| 5508A 18 68 | 10" | GN-40 | 37.50 kg |
| 5508A 20 69 | 12" | GN-45 | 56.90 kg |
| 5508A 22 57 | 14" | GN-60 | 99 kg |
| 5508A 24 54 | 16" | GN-60 | 130.20 kg |
| 5508A 26 58 | 18" | GN-65 | 189.80 kg |
| 5508A 28 100 | 20" | GN-70 | 247.50 kg |
