Wafer type butterfly valve (REF. 2109) with GNP double-acting pneumatic actuator. Cast iron body EN-GJL-200 (GG-20) for mounting between ANSI 150 and EN 1092 PN 10/16 flanges. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Actuator mounting flange according to ISO 5211. Length between faces according to UNE EN 558-1 series 20 (DIN 3202 K1). Epoxy paint coating. Working temperature: -20ºC +120ºC. Maximum working pressure: 16 bar up to 12" and 10 bar for sizes 14" to 20". From 12" and above, operation by manual reducer.
| REFERENCE | SIZE | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5119 09 128 | 2" | GNP-44 | 4.90 kg |
| 5119 10 128 | 2 1/2" | GNP-44 | 5.40 kg |
| 5119 11 128 | 3" | GNP-44 | 6.54 kg |
| 5119 12 138 | 4" | GNP-60 | 9.12 kg |
| 5119 13 142 | 5" | GNP-94 | 10.50 kg |
| 5119 14 142 | 6" | GNP-94 | 10.81 kg |
| 5119 16 150 | 8" | GNP-198 | 19.13 kg |
| 5119 18 158 | 10" | GNP-300 | 30.20 kg |
| 5119 20 162 | 12" | GNP-513 | 41.07 kg |
| 5119 22 171 | 14" | GNP-1280 | 74.25 kg |
| 5119 24 170 | 16" | GNP-1280 | 93.28 kg |
| 5119 26 174 | 18" | GNP-1600 | 124.10 kg |
| 5119 28 176 | 20" | GNP-2300 | 165.85 kg |

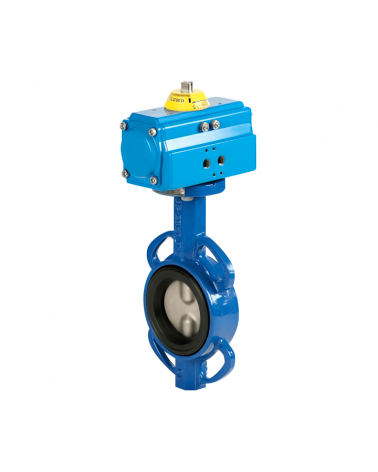

Wafer type butterfly valve with double-acting pneumatic actuator
Wafer type butterfly valve (REF. 2109) with GNP double-acting pneumatic actuator. Cast iron body EN-GJL-200 (GG-20) for mounting between ANSI 150 and EN 1092 PN 10/16 flanges. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Actuator mounting flange according to ISO 5211. Length between faces according to UNE EN 558-1 series 20 (DIN 3202 K1). Epoxy paint coating. Working temperature: -20ºC +120ºC. Maximum working pressure: 16 bar up to 12" and 10 bar for sizes 14" to 20". From 12" and above, operation by manual reducer.
| REFERENCE | SIZE | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5119 09 128 | 2" | GNP-44 | 4.90 kg |
| 5119 10 128 | 2 1/2" | GNP-44 | 5.40 kg |
| 5119 11 128 | 3" | GNP-44 | 6.54 kg |
| 5119 12 138 | 4" | GNP-60 | 9.12 kg |
| 5119 13 142 | 5" | GNP-94 | 10.50 kg |
| 5119 14 142 | 6" | GNP-94 | 10.81 kg |
| 5119 16 150 | 8" | GNP-198 | 19.13 kg |
| 5119 18 158 | 10" | GNP-300 | 30.20 kg |
| 5119 20 162 | 12" | GNP-513 | 41.07 kg |
| 5119 22 171 | 14" | GNP-1280 | 74.25 kg |
| 5119 24 170 | 16" | GNP-1280 | 93.28 kg |
| 5119 26 174 | 18" | GNP-1600 | 124.10 kg |
| 5119 28 176 | 20" | GNP-2300 | 165.85 kg |
€208.92
Tax excluded
