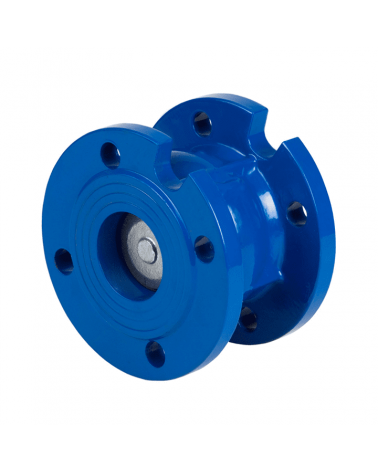

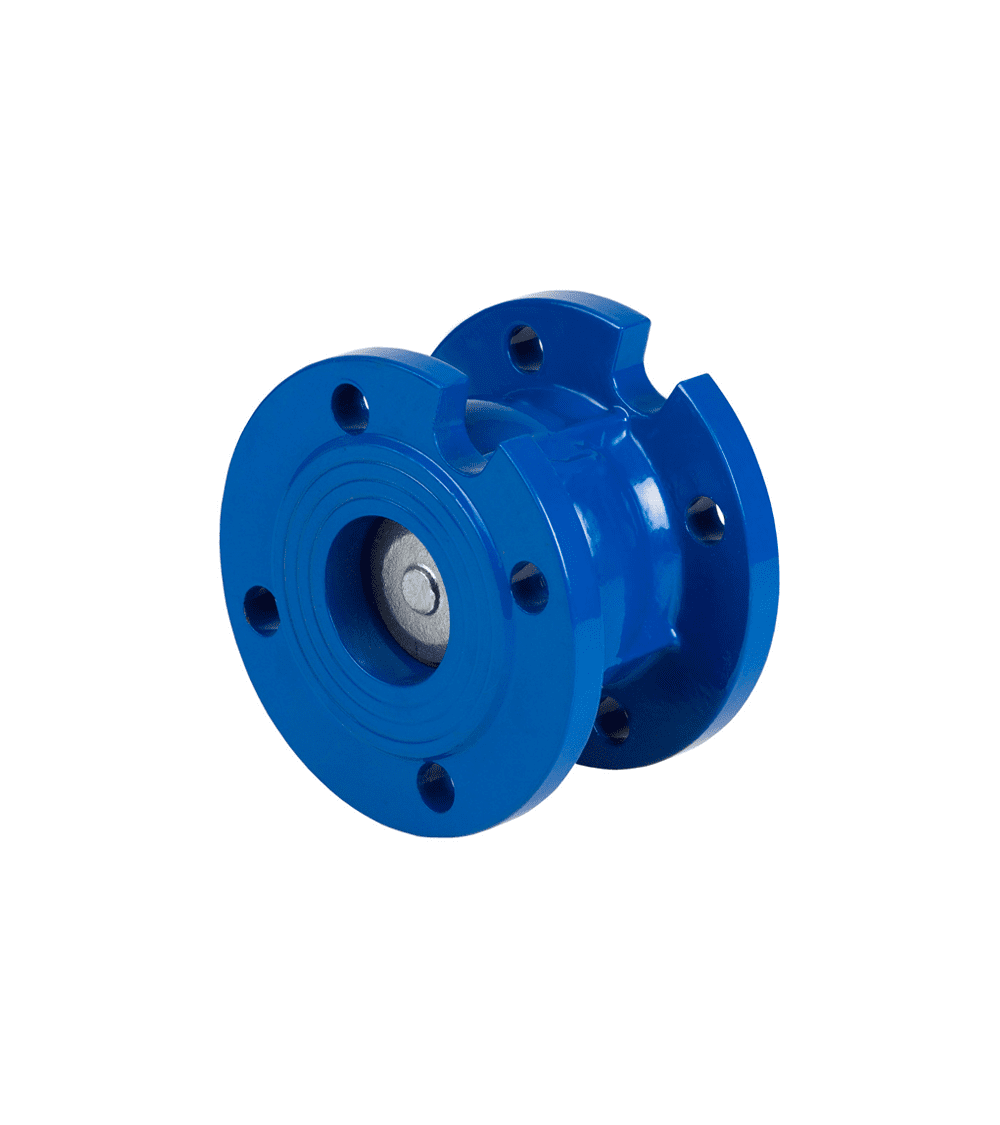

Disc check valve with DIN flanges PN 16

Disc check valve with construction in cast iron EN-GJL-250 (GG-25). Flanged ends according to DIN 2501 PN-16. NBR seal. Silent closing. Nickel-plated brass shaft and guide up to DN-100, DN125 and larger GG-25 nickel-plated. Vertical or horizontal installation. Maximum working pressure: 16 bar. Working temperature: -10ºC +100ºC. Not suitable for steam use.

REFERENCESIZEPNWEIGHT
2450 09 2" 16 5.03 kg
2450 10 2 1/2" 16 7.57 kg
2450 11 3" 16 9.42 kg
2450 12 4" 16 12.67 kg
2450 13 5" 16 20.85 kg
2450 14 6" 16 29.35 kg
2450 16 8" 16 48.05 kg
2450 18 10" 16 71.02 kg

TECHNICAL DATA

€85.21
Tax excluded
Size: 2"
Quantity
Delivery 4-5 days except sale

You might also like

Price €331.17
Bottom check valve with stainless steel construction 1.4408 (CF8M). Flanged end according to DIN 2501 PN-16. Seal made of FKM (Viton). PTFE seal....
Price €2,452.05
Guided disc check valve with construction in stainless steel 1.4401 (AISI 316). FPM (Viton) seat. Flanged ends according to EN 1092-1 PN16....

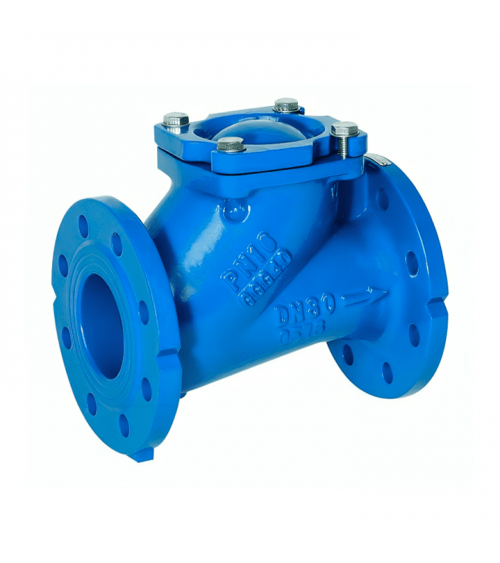

Price €143.87
