Filter for check valve with threaded end according to ISO 228-1. AISI 316 stainless steel construction. Maximum working pressure: 16 bar. Working temperature: -20ºC +150ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2447 04 | 1/2" | 16 | 0.01 kg |
| 2447 05 | 3/4" | 16 | 0.02 kg |
| 2447 06 | 1" | 16 | 0.03 kg |
| 2447 07 | 1 1/4" | 16 | 0.05 kg |
| 2447 08 | 1 1/2" | 16 | 0.06 kg |
| 2447 09 | 2" | 16 | 0.08 kg |
| 2447 10 | 2 1/2" | 16 | 0.13 kg |
| 2447 11 | 3" | 16 | 0.18 kg |
| 2447 12 | 4" | 16 | 0.24 kg |

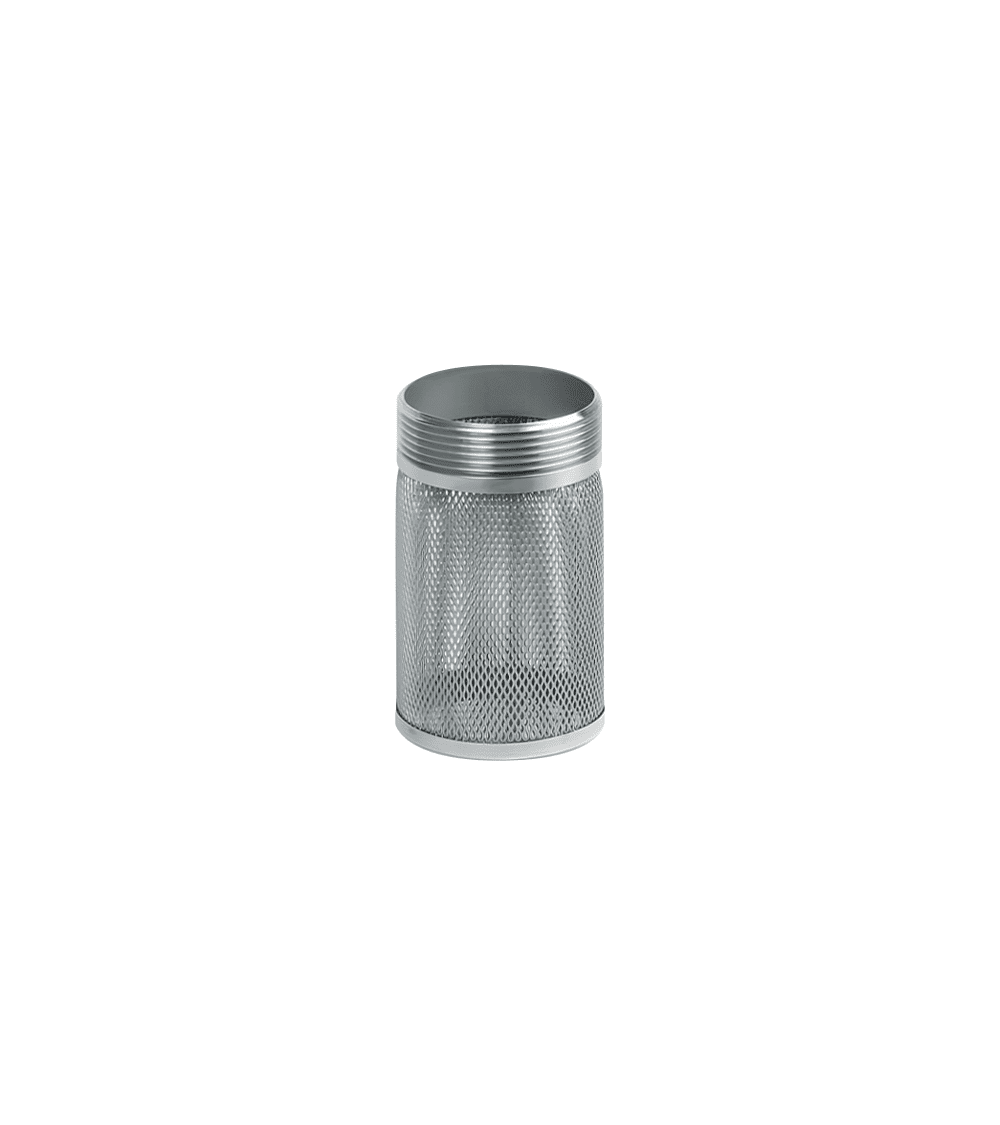

Filter check valve AISI 316
Filter for check valve with threaded end according to ISO 228-1. AISI 316 stainless steel construction. Maximum working pressure: 16 bar. Working temperature: -20ºC +150ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2447 04 | 1/2" | 16 | 0.01 kg |
| 2447 05 | 3/4" | 16 | 0.02 kg |
| 2447 06 | 1" | 16 | 0.03 kg |
| 2447 07 | 1 1/4" | 16 | 0.05 kg |
| 2447 08 | 1 1/2" | 16 | 0.06 kg |
| 2447 09 | 2" | 16 | 0.08 kg |
| 2447 10 | 2 1/2" | 16 | 0.13 kg |
| 2447 11 | 3" | 16 | 0.18 kg |
| 2447 12 | 4" | 16 | 0.24 kg |
€9.87
Tax excluded
