TECHNICAL DATA — Full bore ball valve 2 piece with threaded end according to ISO 7-1 (EN 10226-1) and Camlock (A-A-59326D). Stainless steel construction 1.4408 (CF8M). Seats PTFE + 15% fiberglass. Blow-out proof stem. FPM (Viton) shaft O-ring. PTFE steam gasket. Maximum working pressure: 10 bar. Working temperature: -25ºC +180ºC (in case of using NBR gasket, the working temperature will be: –25ºC +100ºC).

**REFERENCE** **SIZE** PN **WEIGHT**
2016 04 1/2" 10 0.30 kg
2016 05 3/4" 10 0.55 kg
2016 06 1" 10 0.76 kg
2016 07 1 1/4" 10 1.36 kg
2016 08 1 1/2" 10 1.92 kg
2016 09 2" 10 3.16 kg
2016 10 2 1/2" 10 5.43 kg
2016 11 3" 10 8.35 kg

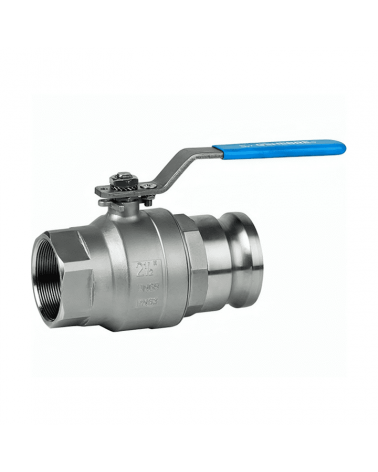

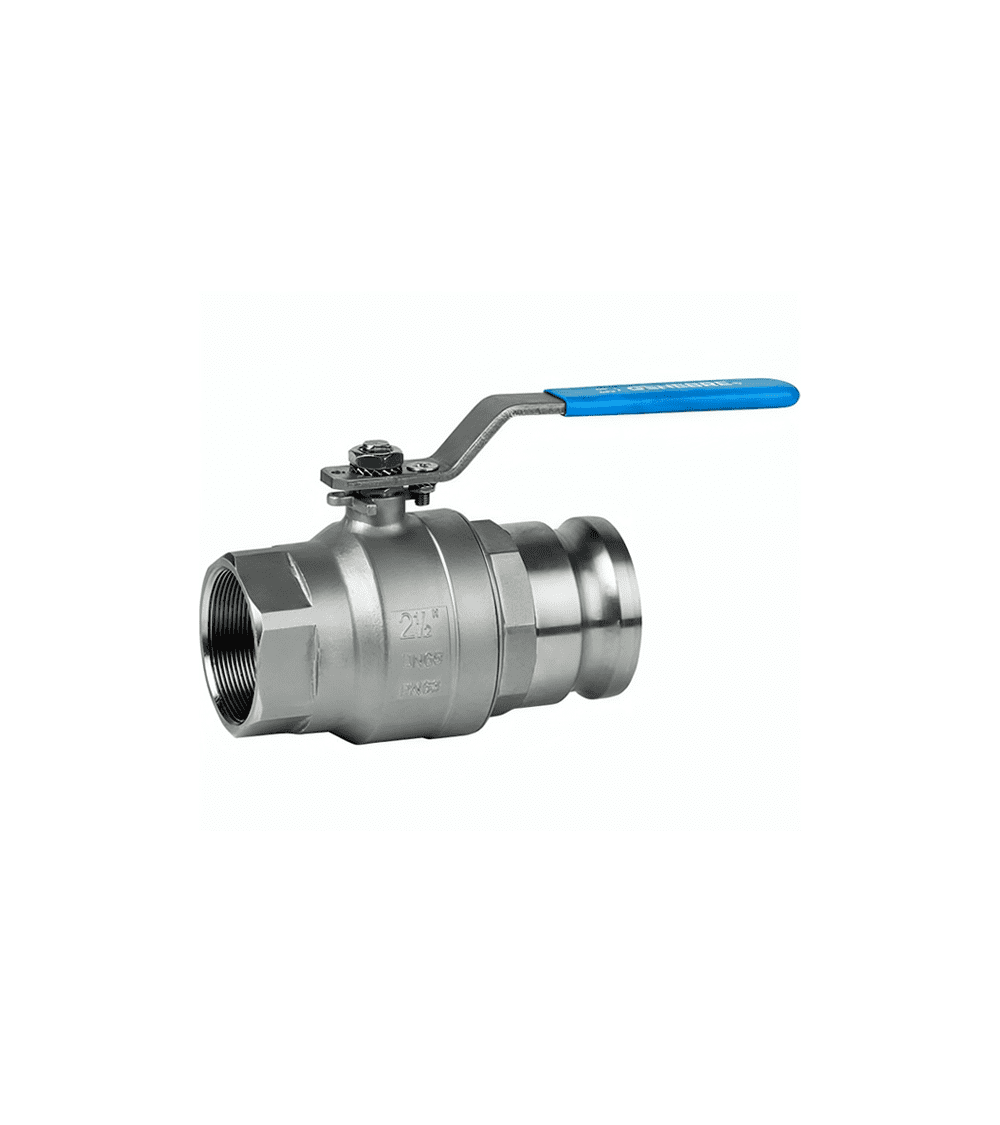

2 piece F-M Camlock ball valve

Full bore ball valve 2 piece with threaded end according to ISO 7-1 (EN 10226-1) and Camlock (A-A-59326D). Stainless steel construction 1.4408 (CF8M). Seats PTFE + 15% fiberglass. Blow-out proof stem. FPM (Viton) shaft O-ring. PTFE steam gasket. Maximum working pressure: 10 bar. Working temperature: -25ºC +180ºC (in case of using NBR gasket, the working temperature will be: –25ºC +100ºC).

REFERENCE	SIZE	PN	WEIGHT
2016 04	1/2"	10	0.30 kg
2016 05	3/4"	10	0.55 kg
2016 06	1"	10	0.76 kg
2016 07	1 1/4"	10	1.36 kg
2016 08	1 1/2"	10	1.92 kg
2016 09	2"	10	3.16 kg
2016 10	2 1/2"	10	5.43 kg
2016 11	3"	10	8.35 kg
