Reduced bore 2 piece ball valve with threaded ends according to ISO 7-1 (EN 10226-1). Stainless steel construction 1.4408 (CF8M). Ball seats PTFE + 15% fiberglass. Blow-out proof stem. Device locking system. Maximum working pressure: 140 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2008 02 | 1/4" | 140 | 0.22 kg |
| 2008 03 | 3/8" | 140 | 0.21 kg |
| 2008 04 | 1/2" | 140 | 0.29 kg |
| 2008 05 | 3/4" | 140 | 0.56 kg |
| 2008 06 | 1" | 140 | 0.82 kg |
| 2008 07 | 1 1/4" | 140 | 1.08 kg |
| 2008 08 | 1 1/2" | 140 | 1.70 kg |
| 2008 09 | 2" | 140 | 2.55 kg |

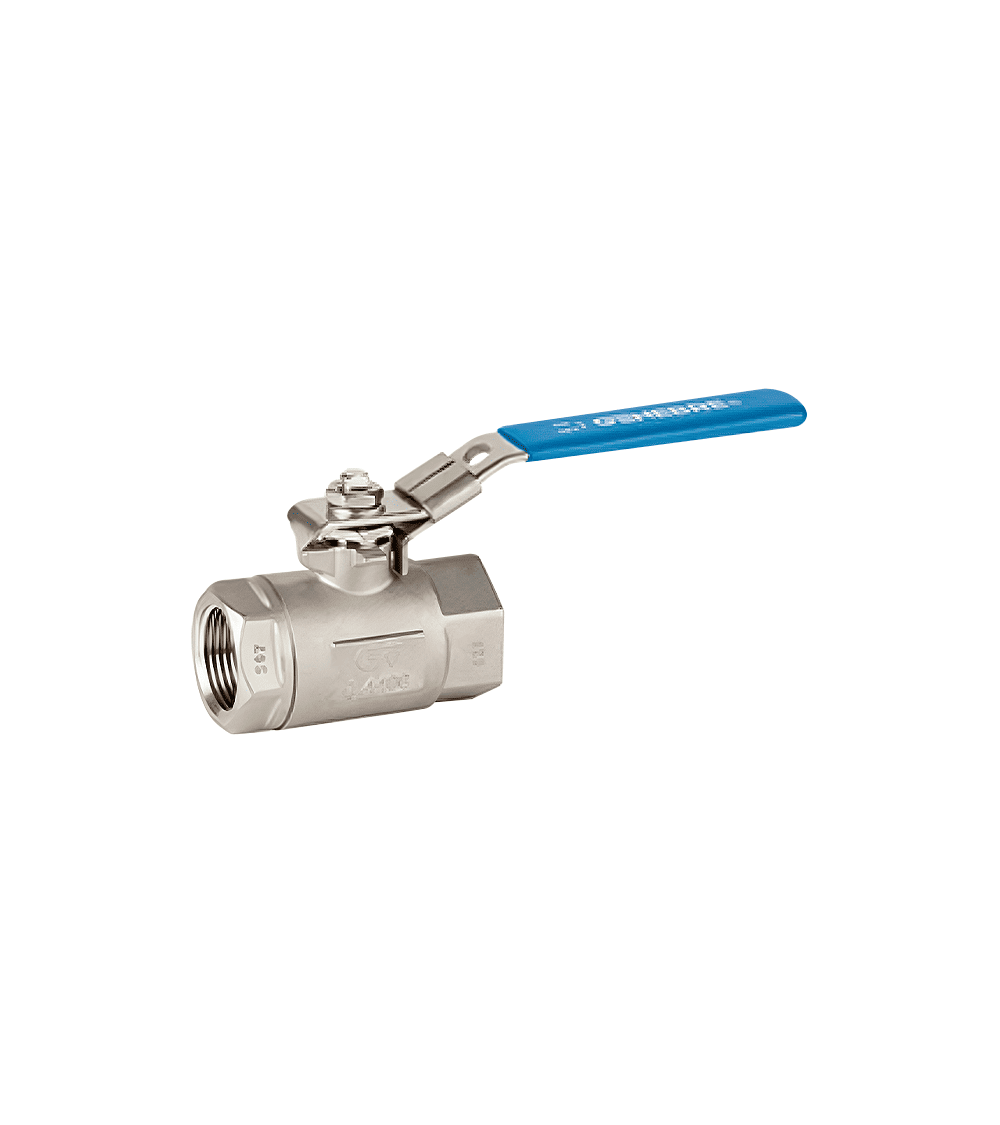

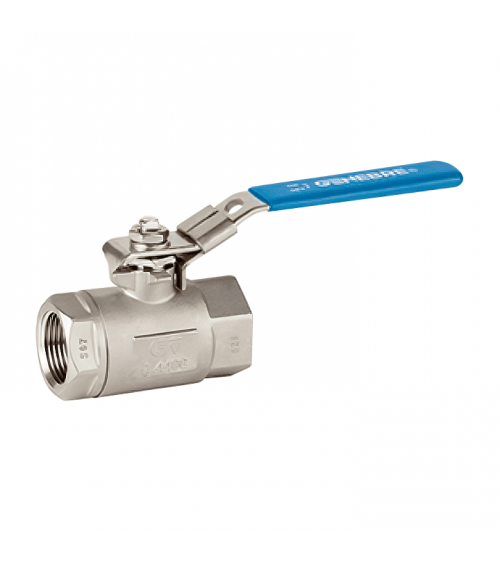

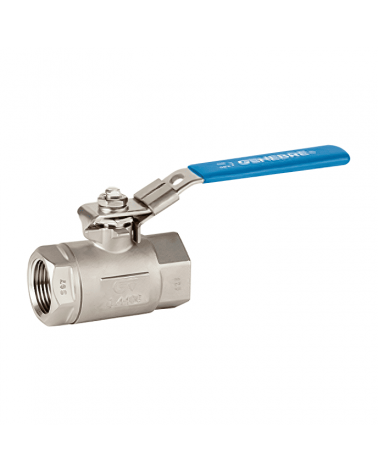

Standard bore ball valve 2 pieces
Reduced bore 2 piece ball valve with threaded ends according to ISO 7-1 (EN 10226-1). Stainless steel construction 1.4408 (CF8M). Ball seats PTFE + 15% fiberglass. Blow-out proof stem. Device locking system. Maximum working pressure: 140 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2008 02 | 1/4" | 140 | 0.22 kg |
| 2008 03 | 3/8" | 140 | 0.21 kg |
| 2008 04 | 1/2" | 140 | 0.29 kg |
| 2008 05 | 3/4" | 140 | 0.56 kg |
| 2008 06 | 1" | 140 | 0.82 kg |
| 2008 07 | 1 1/4" | 140 | 1.08 kg |
| 2008 08 | 1 1/2" | 140 | 1.70 kg |
| 2008 09 | 2" | 140 | 2.55 kg |
€26.48
Tax excluded
Delivery 4-5 days except sale
