High pressure ball valve with gas threaded ends (BSP) female to ISO 228/1. Carbon steel construction ASTM A105. PEEK seat material. Anti-static device. Maximum working pressure: 255 bar / 3700 PSI (ASME B16.34 Class 1500). Working temperature: -30ºC +250ºC.
| REFERENCE | SIZE | PN (PSI) | WEIGHT |
|---|---|---|---|
| 2007 02 | 1/4" | 3700 | 0.63 kg |
| 2007 03 | 3/8" | 3700 | 0.61 kg |
| 2007 04 | 1/2" | 3700 | 0.91 kg |
| 2007 05 | 3/4" | 3700 | 1.55 kg |
| 2007 06 | 1" | 3700 | 2.23 kg |

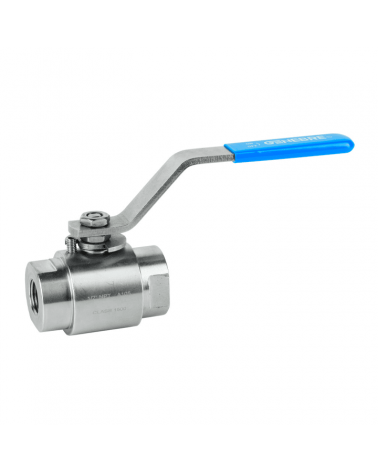

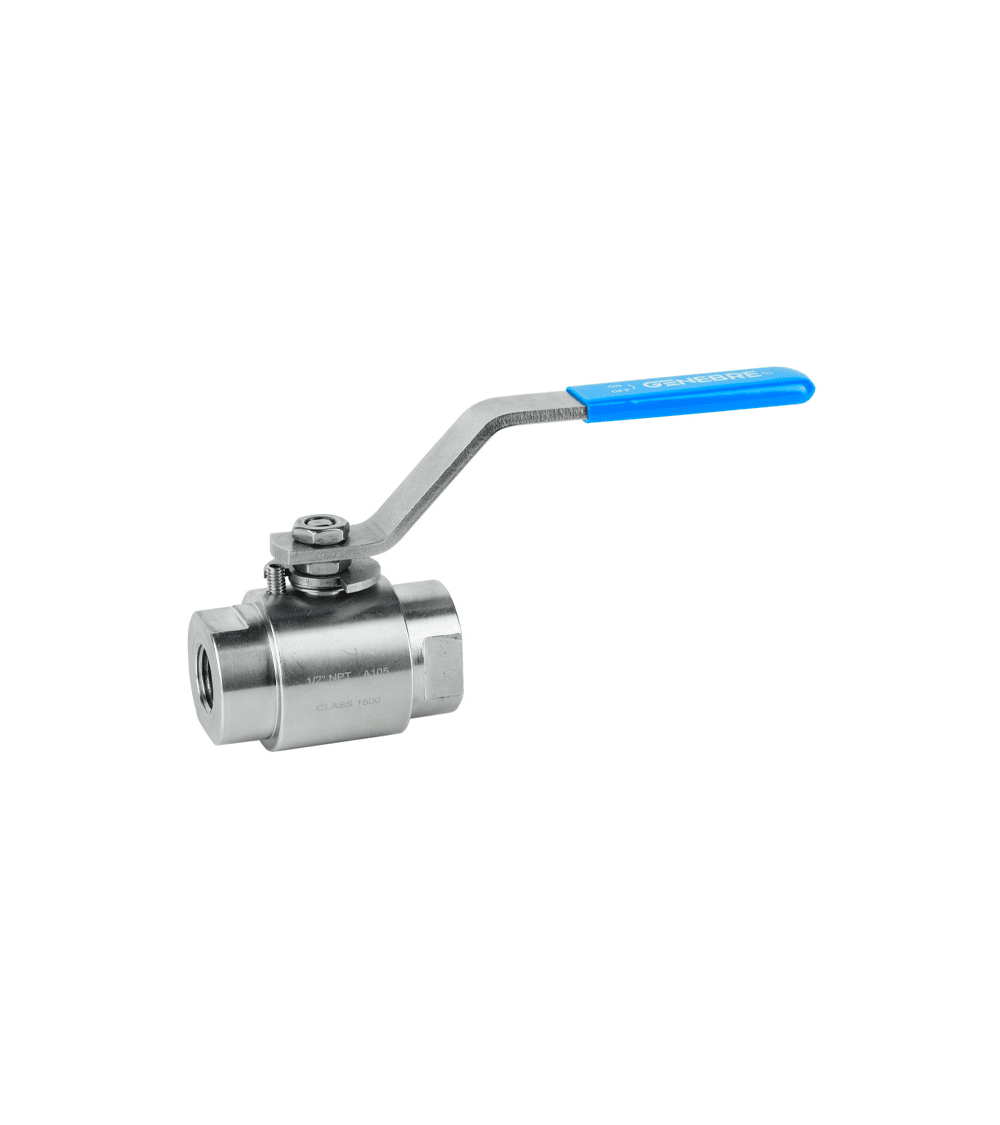

High pressure full bore ball valve
High pressure ball valve with gas threaded ends (BSP) female to ISO 228/1. Carbon steel construction ASTM A105. PEEK seat material. Anti-static device. Maximum working pressure: 255 bar / 3700 PSI (ASME B16.34 Class 1500). Working temperature: -30ºC +250ºC.
| REFERENCE | SIZE | PN (PSI) | WEIGHT |
|---|---|---|---|
| 2007 02 | 1/4" | 3700 | 0.63 kg |
| 2007 03 | 3/8" | 3700 | 0.61 kg |
| 2007 04 | 1/2" | 3700 | 0.91 kg |
| 2007 05 | 3/4" | 3700 | 1.55 kg |
| 2007 06 | 1" | 3700 | 2.23 kg |
€67.23
Tax excluded
Delivery 4-5 days except sale
